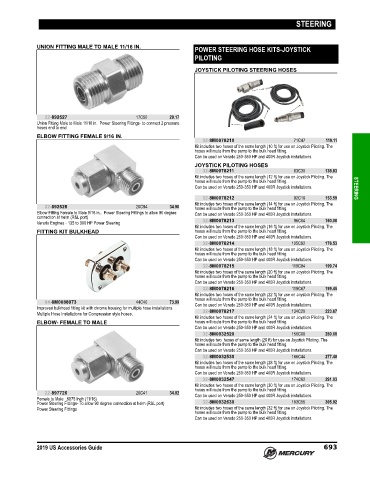

Page 706 - US ACCESSORIES GUIDE (2019)

STEERING

UNION FITTING MALE TO MALE 11/16 IN.
POWER STEERING HOSE KITS-JOYSTICK
PILOTING

JOYSTICK PILOTING STEERING HOSES

22-892527 17C50 29.17
Union Fitting Male to Male 11/16 in. Power Steering Fittings‑ to connect 2 pressure
hoses end to end
ELBOW FITTING FEMALE 9/16 IN.
32-8M0078210 71C47 119.11
Kit includes two hoses of the same length (10 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
JOYSTICK PILOTING HOSES
32-8M0078211 83C30 138.83
Kit includes two hoses of the same length (12 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations. STEERING
32-8M0078212 92C16 153.59
Kit includes two hoses of the same length (14 ft) for use on Joystick Piloting. The
22-892528 20C94 34.90 hoses will route from the pump to the bulk head fitting.
Elbow Fitting Female to Male 9/16 in.. Power Steering Fittings to allow 90 degree Can be used on Verado 250‑350 HP and 400R Joystick installations.
connection at helm (R&L port)
Verado Engines ‑ 135 to 300 HP Power Steering 32-8M0078213 96C04 160.06
Kit includes two hoses of the same length (16 ft) for use on Joystick Piloting. The
FITTING KIT BULKHEAD hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0078214 105C92 176.53
Kit includes two hoses of the same length (18 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0078215 119C84 199.74
Kit includes two hoses of the same length (20 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0078216 119C67 199.45
Kit includes two hoses of the same length (22 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
64-8M0088973 44C40 73.99 Can be used on Verado 250‑350 HP and 400R Joystick installations.
Improved bulkhead fitting kit with chrome housing for multiple hose installations.
Multiple Hose Installations for Compression style hoses. 32-8M0078217 134C20 223.67
Kit includes two hoses of the same length (24 ft) for use on Joystick Piloting. The
ELBOW- FEMALE TO MALE hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0032520 156C00 260.00
Kit includes two hoses of same length (26 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0032530 166C44 277.40
Kit includes two hoses of the same length (28 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0032547 174C62 291.03
Kit includes two hoses of the same length (30 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
22-897726 20C41 34.02 Can be used on Verado 250‑350 HP and 400R Joystick installations.
Female to Male .6875 Inch (11/16)
Power Steering Fittings‑ To allow 90 degree connection at helm (R&L port) 32-8M0032630 183C55 305.92
Power Steering Fittings Kit includes two hoses of the same length (32 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.

2019 US Accessories Guide 693
