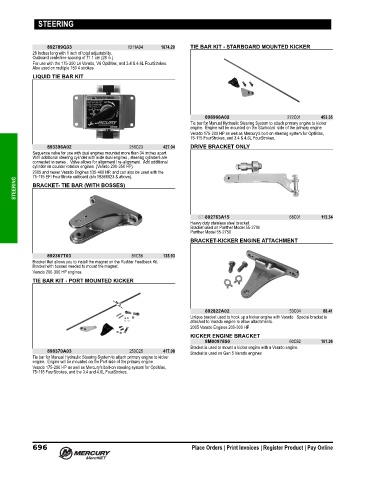

Page 709 - US ACCESSORIES GUIDE (2019)

STEERING

892789Q33 1311A94 1874.20 TIE BAR KIT - STARBOARD MOUNTED KICKER
28 Inches long with 1 inch of total adjustability.
Outboard centerline spacing of 71.1 cm (28 in.)
For use with the 175‑200 L4 Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes.
Also used on multiple 150 4 strokes.
LIQUID TIE BAR KIT

898966A02 272C01 453.35
Tie bar for Manual Hydraulic Steering System to attach primary engine to kicker
engine. Engine will be mounted on the Starboard side of the primary engine
Verado 175‑200 HP as well as Mercury's bolt‑on steering system for OptiMax,
75‑115 FourStrokes, and 3.4 & 4.6L FourStrokes.
893396A02 256C23 427.04 DRIVE BRACKET ONLY
Sequence valve for use with dual engines mounted more than 34 inches apart.
With additional steering cylinder with wide dual engines , steering cylinders are
connected in series . Valve allows for alignment / re‑alignment. Add additional
cylinder on counter rotation engines. (Verado 200‑350 HP)
2005 and newer Verado Engines 135‑400 HP, and can also be used with the
75‑115 EFI FourStroke outboard (s/n 1B366823 & above).
STEERING BRACKET- TIE BAR (WITH BOSSES)

67-892763A15 68C01 113.34
Heavy duty stainless steel bracket.
Bracket used on Panther Model 55‑2700
Panther Model 55‑2750
BRACKET-KICKER ENGINE ATTACHMENT

892367T03 81C56 135.93
Bracket that allows you to install the magnet on the Rudder Feedback Kit.
Bracket with bosses needed to mount the magnet.
Verado 200‑300 HP engines.
TIE BAR KIT - PORT MOUNTED KICKER

892822A02 53C04 88.41
Unique bracket used to hook up a kicker engine with Verado. Special bracket is
attached to Verado engine to allow attachments.
2005 Verado Engines 200‑300 HP
KICKER ENGINE BRACKET
8M0097850 60C82 101.36
Bracket is used to mount a kicker engine with a Verado engine.
898370A03 250C25 417.08 Bracket is used on Gen 5 Verado engines
Tie bar for Manual Hydraulic Steering System to attach primary engine to kicker
engine. Engine will be mounted on the Port side of the primary engine
Verado 175‑200 HP as well as Mercury's bolt‑on steering system for OptiMax,
75‑115 FourStrokes, and the 3.4 and 4.6L FourStrokes.
