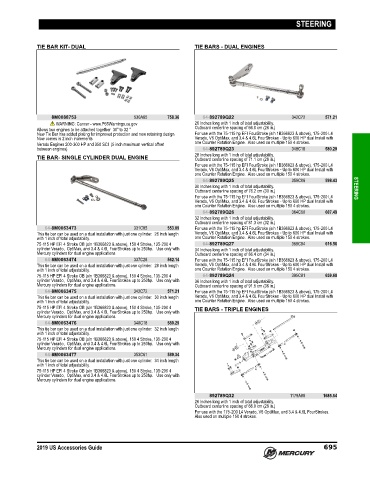

Page 708 - US ACCESSORIES GUIDE (2019)

STEERING

TIE BAR KIT- DUAL TIE BARS - DUAL ENGINES

8M0088753 530A85 758.36 64-892789Q22 342C72 571.21
WARNING: Cancer - www.P65Warnings.ca.gov 26 Inches long with 1 inch of total adjustability.
Allows two engines to be attached together 30" to 32 " Outboard centerline spacing of 66.0 cm (26 in.)
New Tie Bar has added plating for improved protection and new retaining design For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
Now comes in 2 inch increments Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
Verado Engines 200‑300 HP and 350 SCI (5 inch maximum vertical offset one Counter Rotation Engine. Also used on multiple 150 4 strokes.
between engines) 64-892789Q23 348C18 580.29
28 Inches long with 1 inch of total adjustability.
TIE BAR- SINGLE CYLINDER DUAL ENGINE Outboard centerline spacing of 71.1 cm (28 in.)
For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
one Counter Rotation Engine. Also used on multiple 150 4 strokes.
64-892789Q25 359C06 598.43
30 Inches long with 1 inch of total adjustability. STEERING
Outboard centerline spacing of 76.2 cm (30 in.)
For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
one Counter Rotation Engine. Also used on multiple 150 4 strokes.
64-892789Q26 364C50 607.49
32 Inches long with 1 inch of total adjustability.
Outboard centerline spacing of 81.3 cm (32 in.)
64-8M0063473 331C85 553.09 For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
This tie bar can be used on a dual installation with just one cylinder. 26 inch length Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
with 1 inch of total adjustability. one Counter Rotation Engine. Also used on multiple 150 4 strokes.
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke, 135‑200 4 64-892789Q27 369C94 616.56
cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. Use only with 34 Inches long with 1 inch of total adjustability.
Mercury cylinders for dual engine applications Outboard centerline spacing of 86.4 cm (34 in.)
64-8M0063474 337C28 562.14 For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
This tie bar can be used on a dual installation with just one cylinder. 28 inch length Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
with 1 inch of total adjustability. one Counter Rotation Engine. Also used on multiple 150 4 strokes.
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke, 135‑200 4 64-892789Q24 395C81 659.68
cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. Use only with 36 Inches long with 1 inch of total adjustability.
Mercury cylinders for dual engine applications. Outboard centerline spacing of 91.5 cm (36 in.)
64-8M0063475 342C72 571.21 For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
This tie bar can be used on a dual installation with just one cylinder. 30 inch length Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
with 1 inch of total adjustability. one Counter Rotation Engine. Also used on multiple 150 4 strokes.
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke, 135‑200 4 TIE BARS - TRIPLE ENGINES
cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. Use only with
Mercury cylinders for dual engine applications.
64-8M0063476 348C18 580.29
This tie bar can be used on a dual installation with just one cylinder. 32 inch length
with 1 inch of total adjustability.
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke, 135‑200 4
cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. Use only with
Mercury cylinders for dual engine applications.
64-8M0063477 353C61 589.34
This tie bar can be used on a dual installation with just one cylinder. 34 inch length
with 1 inch of total adjustability.
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke, 135‑200 4
cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. Use only with
Mercury cylinders for dual engine applications.

892789Q32 1179A88 1685.54
26 Inches long with 1 inch of total adjustability.
Outboard centerline spacing of 66.0 cm (26 in.)
For use with the 175‑200 L4 Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes.
Also used on multiple 150 4 strokes.

2019 US Accessories Guide 695
