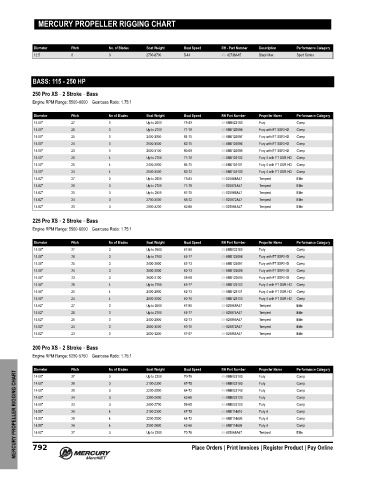

Page 805 - US ACCESSORIES GUIDE (2019)

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.5 8 3 2700-8700 5-14 48- 42738A45 Black Max Sport Series

BASS: 115 - 250 HP

250 Pro XS ‑ 2 Stroke ‑ Bass
Engine RPM Range: 5500‑6000 Gearcase Ratio: 1.75:1

Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Category
14.00" 27 3 Up to 2600 75-83 48-8M8023180 Fury Comp
14.00" 26 3 Up to 2700 71-79 48-8M0125098 Fury with FT SSR HD Comp
14.00" 25 3 2400-2900 64-75 48-8M0125097 Fury with FT SSR HD Comp
14.00" 24 3 2500-3000 62-75 48-8M0125096 Fury with FT SSR HD Comp
14.00" 23 3 2600-3100 60-68 48-8M0125095 Fury with FT SSR HD Comp
14.50" 26 4 Up to 2700 71-79 48-8M0125102 Fury 4 with FT SSR HD Comp
14.50" 25 4 2400-2900 64-75 48-8M0125101 Fury 4 with FT SSR HD Comp
14.50" 24 4 2500-3000 62-72 48-8M0125100 Fury 4 with FT SSR HD Comp
14.62" 27 3 Up to 2600 75-83 48-825868A47 Tempest Elite
14.62" 26 3 Up to 2700 71-79 48-825874A47 Tempest Elite
14.62" 25 3 Up to 2800 67-75 48-825866A47 Tempest Elite
14.62" 24 3 2700-3000 65-72 48-825872A47 Tempest Elite
14.62" 23 3 2900-3200 62-68 48-825864A47 Tempest Elite

225 Pro XS ‑ 2 Stroke ‑ Bass
Engine RPM Range: 5500‑6000 Gearcase Ratio: 1.75:1

Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Category
14.00" 27 3 Up to 2600 67-80 48-8M8023180 Fury Comp
14.00" 26 3 Up to 2700 65-77 48-8M0125098 Fury with FT SSR HD Comp
14.00" 25 3 2400-2900 62-73 48-8M0125097 Fury with FT SSR HD Comp
14.00" 24 3 2500-3000 60-73 48-8M0125096 Fury with FT SSR HD Comp
14.00" 23 3 2600-3100 58-68 48-8M0125095 Fury with FT SSR HD Comp
14.50" 26 4 Up to 2700 65-77 48-8M0125102 Fury 4 with FT SSR HD Comp
14.50" 25 4 2400-2900 62-73 48-8M0125101 Fury 4 with FT SSR HD Comp
14.50" 24 4 2500-3000 60-70 48-8M0125100 Fury 4 with FT SSR HD Comp
14.62" 27 3 Up to 2600 67-80 48-825868A47 Tempest Elite
14.62" 26 3 Up to 2700 65-77 48-825874A47 Tempest Elite
14.62" 25 3 2400-2900 62-73 48-825866A47 Tempest Elite
14.62" 24 3 2500-3000 60-70 48-825872A47 Tempest Elite
14.62" 23 3 2600-3200 57-67 48-825864A47 Tempest Elite

200 Pro XS ‑ 2 Stroke ‑ Bass
Engine RPM Range: 5250‑5750 Gearcase Ratio: 1.75:1

Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Category
MERCURY PROPELLER RIGGING CHART 792 24 3 3 4 4 4 3 2300-2600 62-68 Place Orders | Print Invoices | Register Product | Pay Online
48-8M8023180
3
27
Fury
70-78
14.00"
Up to 2200
Comp
67-75
48-8M8023160
26
Comp
14.00"
2100-2300
3
Fury
2200-2500
Fury
Comp
64-72
48-8M8023140
25
14.00"
3
14.00"
Fury
48-8M8023120
Comp
59-65
48-8M8023100
23
14.00"
Comp
Fury
2400-2700
Fury 4
Comp
48-8M0114410
14.50"
67-75
26
2100-2300
64-72
25
Comp
2200-2500
Fury 4
48-8M0114409
14.50"
24
2300-2600
Comp
62-68
14.50"
48-8M0114408
Fury 4
27
14.62"
Elite
Up to 2200
Tempest
70-78
48-825868A47
