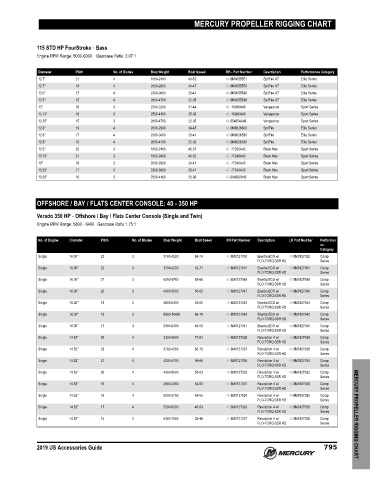

MERCURY PROPELLER RIGGING CHART

115 STD HP FourStroke ‑ Bass
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7" 21 4 1800-2400 40-52 48-8M0055551 SpitFire X7 Elite Series
12.7" 19 4 2000-2900 34-47 48-8M0055550 SpitFire X7 Elite Series
13.0" 17 4 2300-3600 28-41 48-8M0055549 SpitFire X7 Elite Series
13.5" 15 4 2800-4700 22-35 48-8M0055548 SpitFire X7 Elite Series
13” 18 3 2200-3200 31-44 48- 16988A46 Vengeance Sport Series
13.13” 16 3 2500-4100 25-38 48- 16986A46 Vengeance Sport Series
13.25” 15 3 2800-4700 22-35 48-854354A46 Vengeance Sport Series
12.8” 19 4 2000-2900 34-47 48-8M8026600 SpitFire Elite Series
12.8” 17 4 2300-3600 28-41 48-8M8026590 SpitFire Elite Series
12.8” 15 4 2800-4700 22-35 48-8M8026580 SpitFire Elite Series
12.5” 23 3 1600-2100 45-57 48- 77350A45 Black Max Sport Series
12.75” 21 3 1800-2400 40-52 48- 77348A45 Black Max Sport Series
13” 19 3 2000-2900 34-47 48- 77346A45 Black Max Sport Series
13.25” 17 3 2300-3600 28-41 48- 77344A45 Black Max Sport Series
13.25” 16 3 2500-4100 25-38 48-854360A45 Black Max Sport Series

OFFSHORE / BAY / FLATS CENTER CONSOLE: 40 - 350 HP

Verado 350 HP ‑ Offshore / Bay / Flats Center Console (Single and Twin)
Engine RPM Range: 5800 ‑ 6400 Gearcase Ratio 1.75:1

No. of Engine Diameter Pitch No. of Blades Boat Weight Boat Speed RH Part Number Description LH Part Number Performan
ce
Category
Single 16.00” 23 3 3700-4200 65-74 48-8M0127053 Enertia ECO w/ 48-8M0127052 Comp
FLO-TORQ SSR HD Series
Single 16.00” 22 3 3700-4200 62-71 48-8M0127051 Enertia ECO w/ 48-8M0127050 Comp
FLO-TORQ SSR HD Series
Single 16.00” 21 3 4200-4700 59-66 48-8M0127049 Enertia ECO w/ 48-8M0127048 Comp
FLO-TORQ SSR HD Series
Single 16.00” 20 3 4400-5000 55-63 48-8M0127047 Enertia ECO w/ 48-8M0127046 Comp
FLO-TORQ SSR HD Series
Single 16.00” 19 3 4600-5300 53-60 48-8M0127045 Enertia ECO w/ 48-8M0127044 Comp
FLO-TORQ SSR HD Series
Single 16.00” 18 3 8900-10400 65-74 48-8M0127043 Enertia ECO w/ 48-8M0127042 Comp
FLO-TORQ SSR HD Series
Single 16.00” 17 3 5300-6300 46-53 48-8M0127041 Enertia ECO w/ 48-8M0127040 Comp
FLO-TORQ SSR HD Series
Single 14.62" 25 4 3300-3800 71-81 48-8M0127039 Revolution 4 w/ 48-8M0127038 Comp
FLO-TORQ SSR HD Series
Single 14.62" 23 4 3700-4200 65-75 48-8M0127037 Revolution 4 w/ 48-8M0127036 Comp
FLO-TORQ SSR HD Series
Single 14.62” 21 4 4200-4700 59-66 48-8M0127035 Revolution 4 w/ 48-8M0127034 Comp
FLO-TORQ SSR HD Series
Single 14.62" 20 4 4400-5000 55-63 48-8M0127033 Revolution 4 w/ 48-8M0127032 Comp
FLO-TORQ SSR HD Series
Single 14.62” 19 4 4600-5300 53-60 48-8M0127031 Revolution 4 w/ 48-8M0127030 Comp
FLO-TORQ SSR HD Series
Single 14.62" 18 4 5000-5750 49-55 48-8M0137924 Revolution 4 w/ 48-8M0137925 Comp
FLO-TORQ SSR HD Series
Single 14.62” 17 4 5300-6300 46-53 48-8M0127029 Revolution 4 w/ 48-8M0127028 Comp
FLO-TORQ SSR HD Series
Single 14.62” 15 4 6300-7500 39-46 48-8M0127027 Revolution 4 w/ 48-8M0127026 Comp MERCURY PROPELLER RIGGING CHART
FLO-TORQ SSR HD Series

2019 US Accessories Guide 795
