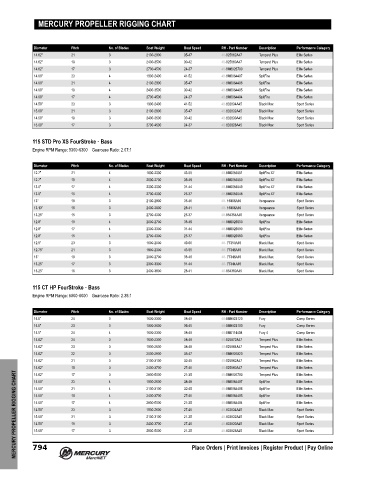

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.62” 21 3 2100-2900 35-47 48-825862A47 Tempest Plus Elite Series
14.62” 19 3 2400-3500 30-42 48-825860A47 Tempest Plus Elite Series
14.62” 17 3 2700-4500 24-37 48-8M8026790 Tempest Plus Elite Series
14.00” 23 4 1900-2400 41-52 48-8M0084497 SpitFire Elite Series
14.00” 21 4 2100-2900 35-47 48-8M0084496 SpitFire Elite Series
14.00” 19 4 2400-3500 30-42 48-8M0084495 SpitFire Elite Series
14.00” 17 4 2700-4500 24-37 48-8M0084494 SpitFire Elite Series
14.50” 23 3 1900-2400 41-52 48-832834A45 Black Max Sport Series
15.00” 21 3 2100-2900 35-47 48-832832A45 Black Max Sport Series
14.50” 19 3 2400-3500 30-42 48-832830A45 Black Max Sport Series
15.00” 17 3 2700-4500 24-37 48-832828A45 Black Max Sport Series

115 STD Pro XS FourStroke ‑ Bass
Engine RPM Range: 5300‑6300 Gearcase Ratio: 2.07:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7" 21 4 1800-2300 43-55 48-8M0055551 SpitFire X7 Elite Series
12.7" 19 4 2000-2700 38-49 48-8M0055550 SpitFire X7 Elite Series
13.0" 17 4 2300-3300 31-44 48-8M0055549 SpitFire X7 Elite Series
13.5" 15 4 2700-4300 25-37 48-8M0055548 SpitFire X7 Elite Series
13” 18 3 2100-2900 35-46 48- 16988A46 Vengeance Sport Series
13.13” 16 3 2400-3800 28-41 48- 16986A46 Vengeance Sport Series
13.25” 15 3 2700-4300 25-37 48-854354A46 Vengeance Sport Series
12.8” 19 4 2000-2700 38-49 48-8M8026600 SpitFire Elite Series
12.8” 17 4 2300-3300 31-44 48-8M8026590 SpitFire Elite Series
12.8” 15 4 2700-4300 25-37 48-8M8026580 SpitFire Elite Series
12.5” 23 3 1600-2000 49-60 48- 77350A45 Black Max Sport Series
12.75” 21 3 1800-2300 43-55 48- 77348A45 Black Max Sport Series
13” 19 3 2000-2700 38-49 48- 77346A45 Black Max Sport Series
13.25” 17 3 2300-3300 31-44 48- 77344A45 Black Max Sport Series
13.25” 16 3 2400-3800 28-41 48-854360A45 Black Max Sport Series

115 CT HP FourStroke ‑ Bass
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.38:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.0” 24 3 1600-2300 38-49 48-8M8023120 Fury Comp Series
14.0" 23 3 1900-2600 36-45 48-8M8023100 Fury Comp Series
14.5” 24 4 1600-2300 38-49 48-8M0114408 Fury 4 Comp Series
14.62” 24 3 1600-2300 38-49 48-825872A47 Tempest Plus Elite Series
14.62” 23 3 1900-2600 38-49 48-825864A47 Tempest Plus Elite Series
14.62” 22 3 2000-2800 35-47 48-8M8026820 Tempest Plus Elite Series
14.62” 21 3 2100-3100 32-45 48-825862A47 Tempest Plus Elite Series
14.62” 19 3 3 4 4 2400-3700 27-40 48-825860A47 Tempest Plus Elite Series
MERCURY PROPELLER RIGGING CHART 794 19 4 4 3 3 3 3 2400-3700 27-40 Place Orders | Print Invoices | Register Product | Pay Online
