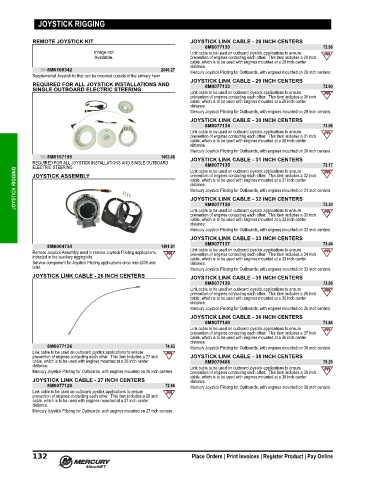

Page 145 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

JOYSTICK RIGGING

REMOTE JOYSTICK KIT JOYSTICK LINK CABLE - 28 INCH CENTERS
8M0077130 72.86
Link cable to be used on outboard joystick applications to ensure
prevention of engines contacting each other. This item includes a 29 inch
cable, which is to be used with engines mounted at a 28 inch center
distance.
98-8M0169342 2040.27 Mercury Joystick Piloting for Outboards, with engines mounted on 28 inch centers.
Supplemental Joystick kit that can be mounted outside of the primary helm
JOYSTICK LINK CABLE - 29 INCH CENTERS
REQUIRED FOR ALL JOYSTICK INSTALLATIONS AND 8M0077133 72.90
SINGLE OUTBOARD ELECTRIC STEERING
Link cable to be used on outboard joystick applications to ensure
prevention of engines contacting each other. This item includes a 30 inch
cable, which is to be used with engines mounted at a 29 inch center
distance.
Mercury Joystick Piloting for Outboards, with engines mounted on 29 inch centers.
JOYSTICK LINK CABLE - 30 INCH CENTERS
8M0077134 73.06
Link cable to be used on outboard joystick applications to ensure
prevention of engines contacting each other. This item includes a 31 inch
cable, which is to be used with engines mounted at a 30 inch center
distance.
Mercury Joystick Piloting for Outboards, with engines mounted on 30 inch centers.
98-8M0157195 1453.48 JOYSTICK LINK CABLE - 31 INCH CENTERS
REQUIRED FOR ALL JOYSTICK INSTALLATIONS AND SINGLE OUTBOARD Link cable to be used on outboard joystick applications to ensure 73.17
8M0077135
ELECTRIC STEERING
JOYSTICK RIGGING cable, which is to be used with engines mounted at a 31 inch center
JOYSTICK ASSEMBLY
prevention of engines contacting each other. This item includes a 32 inch
distance.
Mercury Joystick Piloting for Outboards, with engines mounted on 31 inch centers.
JOYSTICK LINK CABLE - 32 INCH CENTERS
8M0077136
Link cable to be used on outboard joystick applications to ensure 73.30
prevention of engines contacting each other. This item includes a 33 inch
cable, which is to be used with engines mounted at a 32 inch center
distance.
Mercury Joystick Piloting for Outboards, with engines mounted on 32 inch centers.
JOYSTICK LINK CABLE - 33 INCH CENTERS
8M0077137 73.44
8M6004734 1491.61
Remote Joystick Assembly used in remote Joystick Piloting applications, Link cable to be used on outboard joystick applications to ensure
prevention of engines contacting each other. This item includes a 34 inch
included in the auxiliary rigging kits. cable, which is to be used with engines mounted at a 33 inch center
Service component for Joystick Piloting applications circa mid‑2016 and distance.
later. Mercury Joystick Piloting for Outboards, with engines mounted on 33 inch centers.
JOYSTICK LINK CABLE - 26 INCH CENTERS JOYSTICK LINK CABLE - 35 INCH CENTERS
8M0077139 73.68
Link cable to be used on outboard joystick applications to ensure
prevention of engines contacting each other. This item includes a 36 inch
cable, which is to be used with engines mounted at a 35 inch center
distance.
Mercury Joystick Piloting for Outboards, with engines mounted on 35 inch centers.
JOYSTICK LINK CABLE - 36 INCH CENTERS
8M0077140 73.84
Link cable to be used on outboard joystick applications to ensure
prevention of engines contacting each other. This item includes a 37 inch
cable, which is to be used with engines mounted at a 36 inch center
distance.
8M0077126 74.63 Mercury Joystick Piloting for Outboards, with engines mounted on 36 inch centers.
Link cable to be used on outboard joystick applications to ensure
prevention of engines contacting each other. This item includes a 27 inch JOYSTICK LINK CABLE - 38 INCH CENTERS
cable, which is to be used with engines mounted at a 26 inch center 8M0079408 79.29
distance. Link cable to be used on outboard joystick applications to ensure
Mercury Joystick Piloting for Outboards, with engines mounted on 26 inch centers. prevention of engines contacting each other. This item includes a 39 inch
cable, which is to be used with engines mounted at a 38 inch center
JOYSTICK LINK CABLE - 27 INCH CENTERS distance.
8M0077129 72.66 Mercury Joystick Piloting for Outboards, with engines mounted on 38 inch centers.
Link cable to be used on outboard joystick applications to ensure
prevention of engines contacting each other. This item includes a 28 inch
cable, which is to be used with engines mounted at a 27 inch center
distance.
Mercury Joystick Piloting for Outboards, with engines mounted on 27 inch centers.
