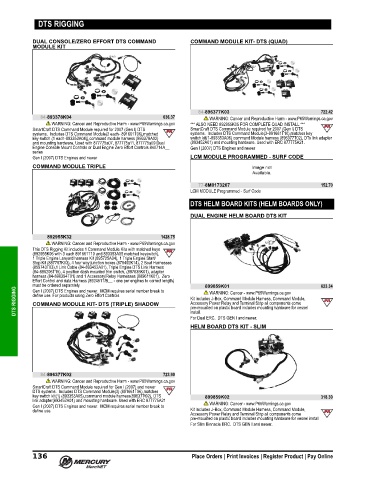

Page 149 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

DTS RIGGING

DUAL CONSOLE/ZERO EFFORT DTS COMMAND COMMAND MODULE KIT- DTS (QUAD)
MODULE KIT

84-896377K03 722.42
84-893378K04 636.37 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov *** ALSO NEED 892955K05 FOR COMPLETE QUAD INSTALL ***
SmartCraft DTS Command Module required for 2007 (Gen I) DTS SmartCraft DTS Command Module required for 2007 (Gen I) DTS
systems. Includes DTS Command Module(2 each‑ 891661T06),matched systems. Includes DTS Command Module(3‑891661T10),matches key
key switch (1 each‑893353A04)),command module harness (893378A02) switch kit(1‑893353A06) command Module harness (896377T02), DTs link adapter
and mounting hardware. Used with 877775a07, 877775a11, 877775a09 Dual (893452A01) and mounting hardware. Used with ERC 877775A21.
Engine Console Mount Controls or Dual Engine Zero Effort Controls 840714A__ Gen I (2007) DTS Engines and newer
series
Gen I (2007) DTS Engines and newer LCM MODULE PROGRAMMED - SURF CODE
COMMAND MODULE TRIPLE

77-8M0173267 152.70
LCM MODULE Programmed ‑ Surf Code
DTS HELM BOARD KITS (HELM BOARDS ONLY)

DUAL ENGINE HELM BOARD DTS KIT

892955K32 1428.75
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This DTS Rigging Kit includes 1 Command Module Kits with matched keys
(892955K06 with 3 each 891661T10 and 893353A05 matched keyswitch),
1 Triple Engine Lanyard harness Kit (895725A04), 1 Triple Engine Start/
Stop Kit (887767K03), 4 four way junction boxes (878492K14), 2 Boat Harnesses
(859743T03),1 Link Cable (84‑893452A01), Triple Engine DTS Link Harness
(84‑896206T15), 4 position dash mounted trim switch, (897635K01), adapter
harness (84‑896394T01) and 1 Accessory/Relay Harnesses (889611K01). Zero
Effort Control and data Harness (892451T/B__ ‑ one per engines to correct length)
must be ordered separately. 899859K01 623.34
DTS RIGGING define use. For products using Zero Effort Controls Kit includes J‑Box, Command Module Harness, Command Module,
Gen I (2007) DTS Engines and newer. MCM requires serial number break to
WARNING: Cancer - www.P65Warnings.ca.gov
Accessory Power Relay and Terminal Strip all components come
COMMAND MODULE KIT- DTS (TRIPLE) SHADOW
pre‑mounted on plastic board includes mounting hardware for vessel
install.
For Dual ERC. DTS GEN I and newer.
HELM BOARD DTS KIT - SLIM

84-896377K02 723.90
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
SmartCraft DTS Command Module required for Gen I (2007) and newer
DTS systems. Includes DTS Command Module(3) (891661T06),matches
key switch kIt(1) (893353A05),command module harness(896377t02), DTS 899859K02 318.30
link adapter(893452A01) and mounting hardware. Used with ERC 877775A21 WARNING: Cancer - www.P65Warnings.ca.gov
Gen I (2007) DTS Engines and newer. MCM requires serial number break to
define use. Kit includes J‑Box, Command Module Harness, Command Module,
Accessory Power Relay and Terminal Strip all components come
pre‑mounted on plastic board includes mounting hardware for vessel install
For Slim Binnacle ERC. DTS GEN I and newer.
