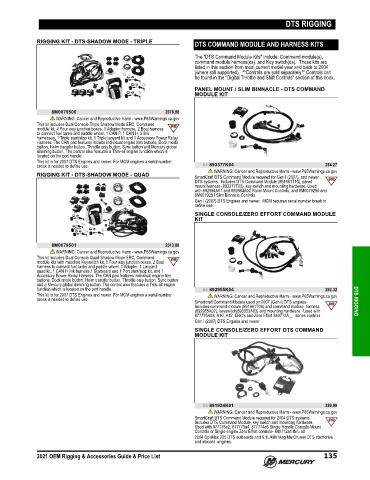

Page 148 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

DTS RIGGING

RIGGING KIT - DTS-SHADOW MODE - TRIPLE DTS COMMAND MODULE AND HARNESS KITS

The "DTS Command Module Kits" include: Command module(s),
command module harness(es), and Key switch(es). These kits are
listed in this section from most current model year and back to 2004
(where still supported). **Controls are sold separately** Controls can
be found in the "Digital Throttle and Shift Controls" section of this book.

PANEL MOUNT / SLIM BINNACLE - DTS COMMAND
MODULE KIT

8M0079500 2078.98
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This kit includes Dual Console Triple Shadow Mode ERC, Command
module kit, 4 Four way junction boxes, 1 Adapter harness, 2 Boat harness
to connect fuel tanks and paddle wheel, 1 CAN P, 1 CAN H, 3 link
harnesses, 1 Triple start/stop kit, 1 Triple lanyard kit and 1 Accessory Power Relay
Harness. The CAN pad features include individual engine trim buttons, Dock mode
button, Helm transfer button, Throttle only button, Sync button and Mercury global
dimming button. The control also features a Trim‑all engine function which is
located on the port handle.
This kit is for 2007 DTS Engines and newer. For MCM engines a serial number
break is needed to define use. 84-893377K04 284.27
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RIGGING KIT - DTS-SHADOW MODE - QUAD
SmartCraft DTS Command Module required for Gen I (2007) and newer
DTS systems. Includes DTS Command Module (891661T10), panel
mount harness (893377T03), key switch and mounting hardware. Used
with 892984A01 and 892984A02 Panel Mount Controls, and 8M0079290 and
8M0079291 Slim Binnacle Controls.
Gen I (2007) DTS Engines and newer. MCM requires serial number break to
define use.
SINGLE CONSOLE/ZERO EFFORT COMMAND MODULE
KIT

8M0079501 2513.80
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This kit includes Dual Console Quad Shadow Mode ERC, Command
module kits with matched Keyswitch kit, 5 Four way junction boxes, 2 Boat
harness to connect fuel tanks and paddle wheel, 1 Adapter, 1 Lanyard
quad kit, 1 CAN H link harness,1 Starboard and 1 Port start/stop kit, and 1
Accessory Power Relay Harness. The CAN pad features individual engine trim
buttons, Dock mode button, Helm transfer button, Throttle only button, Sync button
and a Mercury global dimming button. The control also features a Trim‑all engine
function which is located on the port handle. 84-892955K04 292.32
This kit is for 2007 DTS Engines and newer. For MCM engines a serial number WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
break is needed to define use. Smartcraft Command Module used on 2007 (Gen I) DTS engines‑ DTS RIGGING
Includes command module (891661T06) and command module harness
(892955A02), keyswitch(893353A03) and mounting hardware. Used with
877775A08, A10, A12, ERC's and Zero Effort 840712A__ series controls
Gen I (2007) DTS Engines and newer
SINGLE CONSOLE/ZERO EFFORT DTS COMMAND
MODULE KIT

84-891924K01 289.99
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
SmartCraft DTS Command Module required for 2004 DTS systems.
Includes DTS Command Module, key switch and mounting hardware.
Used with 877775a2, 877775a4, 877774a6 Single Handle Console Mount
Controls or Single engine Zero Effort controls‑ 840712a1 thru a8
2004 OptiMax 225 DTS outboards and 8.1L/496 Mag MerCruiser DTS sterndrive
and inboard engines.
2021 OEM Rigging & Accessories Guide & Price List 135
