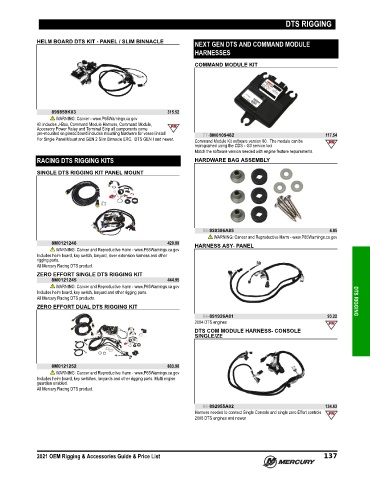

Page 150 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

DTS RIGGING

HELM BOARD DTS KIT - PANEL / SLIM BINNACLE NEXT GEN DTS AND COMMAND MODULE
HARNESSES

COMMAND MODULE KIT

899859K03 315.52
WARNING: Cancer - www.P65Warnings.ca.gov
Kit includes J‑Box, Command Module Harness, Command Module,
Accessory Power Relay and Terminal Strip all components come
pre‑mounted on plastic board includes mounting hardware for vessel install 77-8M0109482 117.54
For Single Panel Mount and GEN 2 Slim Binnacle ERC. DTS GEN I and newer. Command Module Kit software version 80. The module can be
reprogramed using the CDS ‑ G3 service tool
Match the software version needed with engine feature requirements
RACING DTS RIGGING KITS HARDWARE BAG ASSEMBLY

SINGLE DTS RIGGING KIT PANEL MOUNT

56-820386A85 4.85
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
8M0121246 420.08 HARNESS ASY- PANEL
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Includes helm board, key switch, lanyard, lever extension harness and other
rigging parts.
All Mercury Racing DTS product.
ZERO EFFORT SINGLE DTS RIGGING KIT
8M0121245 444.95
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Includes helm board, key switch, lanyard and other rigging parts.
All Mercury Racing DTS products. DTS RIGGING
ZERO EFFORT DUAL DTS RIGGING KIT
84-891926A01 93.22
2004 DTS engines
DTS COM MODULE HARNESS- CONSOLE
SINGLE/ZE

8M0121252 883.98
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Includes helm board, key switches, lanyards and other rigging parts. Multi engine
guardian enabled.
All Mercury Racing DTS product.

84-892955A02 134.63
Harness needed to connect Single Console and single zero Effort controls
2006 DTS engines and newer

2021 OEM Rigging & Accessories Guide & Price List 137
