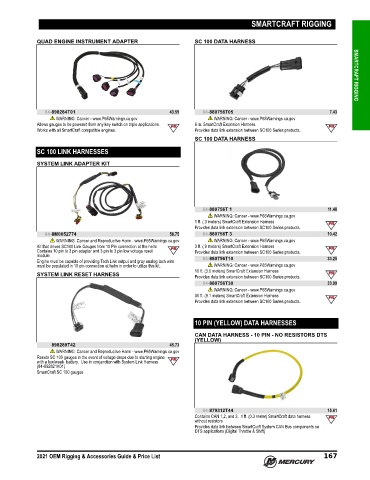

Page 180 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

SMARTCRAFT RIGGING

QUAD ENGINE INSTRUMENT ADAPTER SC 100 DATA HARNESS SMARTCRAFT RIGGING

84-898284T01 43.55 84-880756T05 7.43
WARNING: Cancer - www.P65Warnings.ca.gov WARNING: Cancer - www.P65Warnings.ca.gov
Allows gauges to be powered from any key switch on triple applications. 6 in. SmartCraft Extension Harness
Works with all SmartCraft compatible engines. Provides data link extension between SC100 Series products.
SC 100 DATA HARNESS
SC 100 LINK HARNESSES

SYSTEM LINK ADAPTER KIT

84-880756T 1 11.48
WARNING: Cancer - www.P65Warnings.ca.gov
1 ft. (.3 meters) SmartCraft Extension Harness
Provides data link extension between SC100 Series products.
84-8M0052774 58.75 84-880756T 3 10.42
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer - www.P65Warnings.ca.gov
Kit that drives SC100 Link Gauges from 10 Pin connection at the helm. 3 ft. (.9 meters) SmartCraft Extension Harness
Contains 10 pin to 3 pin adapter and 3 pin to 3 pin low voltage reset Provides data link extension between SC100 Series products.
module. 84-880756T10 33.25
Engine must be capable of providing Tach Link output and gray analog tach wire
must be populated in 10 pin connection at helm in order to utilize this kit. WARNING: Cancer - www.P65Warnings.ca.gov
10 ft. (3.0 meters) SmartCraft Extension Harness
SYSTEM LINK RESET HARNESS Provides data link extension between SC100 Series products.
84-880756T30 33.99
WARNING: Cancer - www.P65Warnings.ca.gov
30 ft. (9.1 meters) SmartCraft Extension Harness
Provides data link extension between SC100 Series products.

10 PIN (YELLOW) DATA HARNESSES
CAN DATA HARNESS - 10 PIN - NO RESISTORS DTS
(YELLOW)
898289T42 45.73
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resets SC 100 gauges in the event of voltage drops due to starting engine
with a low/weak battery. Use in conjunction with System Link Harness
(84‑892821K01)
SmartCraft SC 100 gauges

84-879312T44 15.61
Contains CAN 1,2, and 3. 1 ft. (0.3 meter) SmartCraft data harness
without resistors
Provides data link between SmartCraft System CAN Bus components on
DTS applications (Digital Throttle & Shift)

2021 OEM Rigging & Accessories Guide & Price List 167
