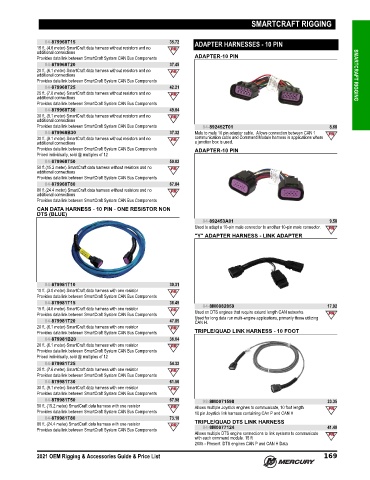

Page 182 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

SMARTCRAFT RIGGING

84-879968T15 35.72 ADAPTER HARNESSES - 10 PIN
15 ft. (4.6 meter) SmartCraft data harness without resistors and no
additional connections
Provides data link between SmartCraft System CAN Bus Components ADAPTER-10 PIN
84-879968T20 37.45
20 ft. (6.1 meter) SmartCraft data harness without resistors and no
additional connections SMARTCRAFT RIGGING
Provides data link between SmartCraft System CAN Bus Components
84-879968T25 42.21
25 ft. (7.6 meter) SmartCraft data harness without resistors and no
additional connections
Provides data link between SmartCraft System CAN Bus Components
84-879968T30 49.84
30 ft. (9.1 meter) SmartCraft data harness without resistors and no
additional connections
Provides data link between SmartCraft System CAN Bus Components 84-892452T01 8.68
84-879968B30 37.32 Male to male 10 pin adapter cable. Allows connection between CAN 1
30 ft. (9.1 meter) SmartCraft data harness without resistors and no communication cable and Command Module harness in applications where
additional connections a junction box is used.
Provides data link between SmartCraft System CAN Bus Components ADAPTER-10 PIN
Priced individually, sold @ multiples of 12
84-879968T50 50.02
50 ft (15.2 meter) SmartCraft data harness without resistors and no
additional connections
Provides data link between SmartCraft System CAN Bus Components
84-879968T80 67.84
80 ft (24.4 meter) SmartCraft data harness without resistors and no
additional connections
Provides data link between SmartCraft System CAN Bus Components
CAN DATA HARNESS - 10 PIN - ONE RESISTOR NON
DTS (BLUE)
84-892453A01 9.58
Used to adapt a 10‑pin male connector to another 10‑pin male connector.
"Y" ADAPTER HARNESS - LINK ADAPTER

84-879981T10 30.31
10 ft. (3.0 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft System CAN Bus Components
84-879981T15 36.49
15 ft. (4.6 meter) SmartCraft data harness with one resistor 84-8M0082859 17.92
Provides data link between SmartCraft System CAN Bus Components Used on DTS engines that require extend length CAN networks.
84-879981T20 47.85 Used for long data run multi‑engine applications, primarily those utilizing
CAN H.
20 ft. (6.1 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft System CAN Bus Components TRIPLE/QUAD LINK HARNESS - 10 FOOT
84-879981B20 36.64
20 ft. (6.1 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft System CAN Bus Components
Priced individually, sold @ multiples of 12
84-879981T25 54.32
25 ft. (7.6 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft System CAN Bus Components
84-879981T30 61.56
30 ft. (9.1 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft System CAN Bus Components
84-879981T50 67.98 98-8M0071598 33.35
50 ft. (15.2 meter) SmartCraft data harness with one resistor Allows multiple Joystick engines to communicate, 10 foot length
Provides data link between SmartCraft System CAN Bus Components 10 pin Joystick link harness containing CAn P and CAN H
84-879981T80 73.18
80 ft. (24.4 meter) SmartCraft data harness with one resistor TRIPLE/QUAD DTS LINK HARNESS
Provides data link between SmartCraft System CAN Bus Components 84-8M0077124 41.40
Allows multiple DTS engine connections to link systems to communicate
with each command module. 15 ft
2005 ‑ Present DTS engines CAN P and CAN H Data
2021 OEM Rigging & Accessories Guide & Price List 169
