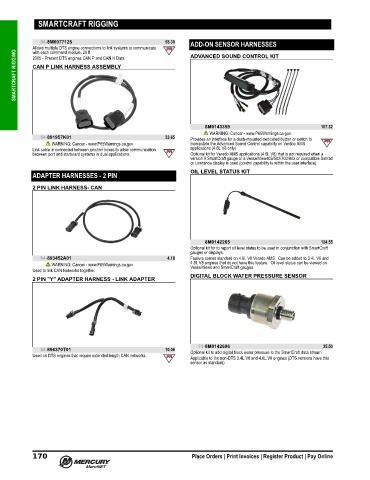

Page 183 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

SMARTCRAFT RIGGING

84-8M0077125 55.30 ADD-ON SENSOR HARNESSES
Allows multiple DTS engine connections to link systems to communicate ADVANCED SOUND CONTROL KIT
SMARTCRAFT RIGGING CAN P LINK HARNESS ASSEMBLY
with each command module. 20 ft
2005 ‑ Present DTS engines CAN P and CAN H Data

8M0143359 107.32
WARNING: Cancer - www.P65Warnings.ca.gov
84-891957K01 23.65 Provides an interface for a dash‑mounted dedicated button or switch to
WARNING: Cancer - www.P65Warnings.ca.gov manipulate the Advanced Sound Control capability on Verdao AMS
Link cable in connected between junction boxes to allow communication applications (4.6L V8 only)
between port and starboard systems in dual applications. Optional kit for Verado AMS applications (4.6L V8) that is not required when a
version 9 SmartCraft gauge or a VesselView403/502/702/903 or compatible Simrad
or Lowrance display is used (control capability is within the user interface).
OIL LEVEL STATUS KIT
ADAPTER HARNESSES - 2 PIN
2 PIN LINK HARNESS- CAN

8M0142265 124.55
Optional kit for to report oil level status to be used in conjunction with SmartCraft
gauges or displays.
84-893452A01 4.18 Feature comes standard on 4.6L V8 Verado AMS. Can be added to 3.4L V6 and
WARNING: Cancer - www.P65Warnings.ca.gov 4.8L V8 engines that do not have this feature. Oil level status can be viewed on
VesselViews and SmartCraft gauges.
Used to link CAN Networks together.
DIGITAL BLOCK WATER PRESSURE SENSOR
2 PIN "Y" ADAPTER HARNESS - LINK ADAPTER

71-8M0142696 35.50
84-896370T01 10.06
Used on DTS engines that require extended length CAN networks. Optional kit to add digital block water pressure to the SmartCraft data stream
Applicable to the non‑DTS 3.4L V6 and 4.6L V8 engines (DTS versions have this
sensor as standard)

170 Place Orders | Print Invoices | Register Product | Pay Online
