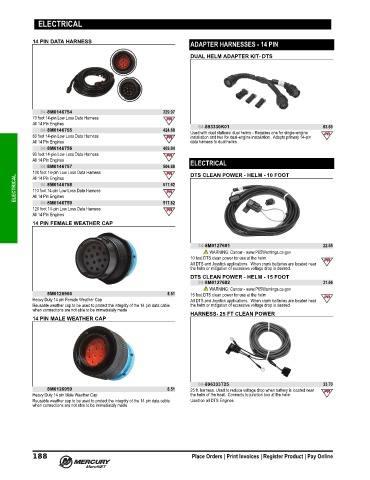

Page 201 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477
P. 201

ELECTRICAL


            14 PIN DATA HARNESS                                 ADAPTER HARNESSES - 14 PIN

                                                                DUAL HELM ADAPTER KIT- DTS









              84-8M0146754                             329.97
            70 foot 14‑pin Low Loss Data Harness
            All 14 Pin Engines                                     84-893330K01                             83.69
              84-8M0146755                             424.68   Used with dual stations/ dual helms ‑ Requires one for single‑engine
            80 foot 14‑pin Low Loss Data Harness                installation and two for dual‑engine installation.  Adapts primary 14‑pin
            All 14 Pin Engines                                  data harness to dual helms.
              84-8M0146756                             469.84
            90 foot 14‑pin Low Loss Data Harness
            All 14 Pin Engines                                  ELECTRICAL
              84-8M0146757                             506.88
            100 foot 14‑pin Low Loss Data Harness               DTS CLEAN POWER - HELM - 10 FOOT
      ELECTRICAL  110 foot 14‑pin Low Loss Data Harness  517.62
            All 14 Pin Engines
              84-8M0146758
            All 14 Pin Engines
              84-8M0146759
            120 foot 14‑pin Low Loss Data Harness      517.62
            All 14 Pin Engines
            14 PIN FEMALE WEATHER CAP



                                                                   84-8M0127681                             22.55
                                                                       WARNING: Cancer - www.P65Warnings.ca.gov
                                                                10 foot DTS clean power for use at the helm.
                                                                All DTS and Joystick applications.  When crank batteries are located near
                                                                the helm or mitigation of excessive voltage drop is desired.
                                                                DTS CLEAN POWER - HELM - 15 FOOT
                                                                   84-8M0127682                             31.66
                                                                       WARNING: Cancer - www.P65Warnings.ca.gov
                 8M0126960                              8.51    15 foot DTS clean power for use at the helm
            Heavy Duty 14 pin Female Weather Cap                All DTS and Joystick applications.  When crank batteries are located near
            Reusable weather cap to be used to protect the integrity of the 14 pin data cable  the helm or mitigation of excessive voltage drop is desired
            when connections are not able to be immediately made
                                                                HARNESS- 25 FT CLEAN POWER
            14 PIN MALE WEATHER CAP












                                                                   84-896333T25                             33.70
                 8M0126959                              8.51    25 ft. harness. Used to reduce voltage drop when battery is located near
            Heavy Duty 14 pin Male Weather Cap                  the helm of the boat.  Connects to junction box at the helm.
            Reusable weather cap to be used to protect the integrity of the 14 pin data cable  Used on all DTS Engines
            when connections are not able to be immediately made
