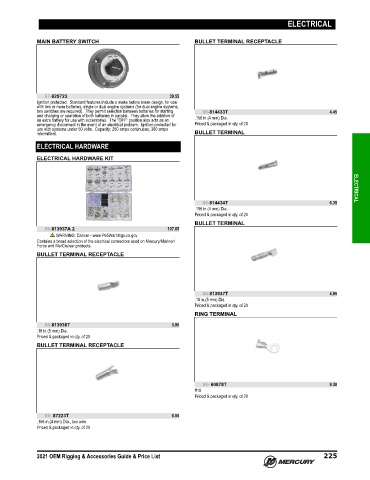

Page 238 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

ELECTRICAL

MAIN BATTERY SWITCH BULLET TERMINAL RECEPTACLE

67-829723 39.55
Ignition protected. Standard features include a make before break design, for use
with two or more batteries, single or dual engine systems (for dual engine systems,
two switches are required). They permit selection between batteries for starting 86-814433T 4.45
and charging or operation of both batteries in parallel. They allow the addition of .156 in.(4 mm) Dia.
an extra battery for use with accessories. The "OFF" position also acts as an
emergency disconnect in the event of an electrical problem. Ignition protected for Priced & packaged in qty. of 20
use with systems under 50 volts. Capacity: 250 amps continuous, 360 amps
intermittent. BULLET TERMINAL
ELECTRICAL HARDWARE

ELECTRICAL HARDWARE KIT

86-814434T 6.35 ELECTRICAL
.156 in.(4 mm) Dia.
Priced & packaged in qty. of 20
BULLET TERMINAL
86-813937A 2 107.65
WARNING: Cancer - www.P65Warnings.ca.gov
Contains a broad selection of the electrical connectors used on Mercury/Mariner/
Force and MerCruiser products.
BULLET TERMINAL RECEPTACLE

86-813937T 4.95
.18 in.(5 mm) Dia.
Priced & packaged in qty. of 20
RING TERMINAL
86-813936T 3.90
.18 in.(5 mm) Dia.
Priced & packaged in qty. of 20
BULLET TERMINAL RECEPTACLE

86- 60878T 9.30
#10
Priced & packaged in qty. of 20

86- 87223T 6.55
.156 in.(4 mm) Dia., two wire.
Priced & packaged in qty. of 20

2021 OEM Rigging & Accessories Guide & Price List 225
