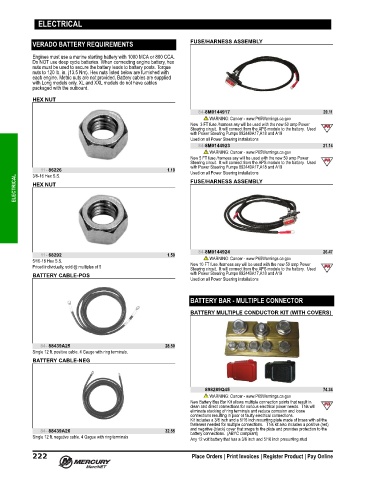

Page 235 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

ELECTRICAL

VERADO BATTERY REQUIREMENTS FUSE/HARNESS ASSEMBLY

Engines must use a marine starting battery with 1000 MCA or 800 CCA.
Do NOT use deep cycle batteries. When connecting engine battery, hex
nuts must be used to secure the battery leads to battery posts. Torque
nuts to 120 lb. in. (13.5 Nm). Hex nuts listed below are furnished with
each engine. Metric nuts are not provided. Battery cables are supplied
with Long models only. XL and XXL models do not have cables
packaged with the outboard.
HEX NUT
84-8M0144917 20.11
WARNING: Cancer - www.P65Warnings.ca.gov
New 3 FT fuse /harness asy will be used with the new 50 amp Power
Steering circuit. It will connect from the APS module to the battery. Used
with Power Steering Pumps 892440A17,A18 and A19
Used on all Power Steering installations
84-8M0144923 21.14
WARNING: Cancer - www.P65Warnings.ca.gov
New 5 FT fuse /harness asy will be used with the new 50 amp Power
Steering circuit. It will connect from the APS module to the battery. Used
with Power Steering Pumps 892440A17,A18 and A19
11- 86226 1.10 Used on all Power Steering installations
3/8‑16 Hex S.S.
ELECTRICAL HEX NUT FUSE/HARNESS ASSEMBLY

84-8M0144924 26.47
11- 68292 1.50
5/16‑18 Hex S.S. WARNING: Cancer - www.P65Warnings.ca.gov
Priced individually, sold @ multiples of 5 New 10 FT fuse /harness asy will be used with the new 50 amp Power
Steering circuit. It will connect from the APS module to the battery. Used
BATTERY CABLE-POS with Power Steering Pumps 892440A17,A18 and A19
Used on all Power Steering installations

BATTERY BAR - MULTIPLE CONNECTOR

BATTERY MULTIPLE CONDUCTOR KIT (WITH COVERS)

84- 88439A25 28.50
Single 12 ft. positive cable. 4 Gauge with ring terminals.
BATTERY CABLE-NEG

898289Q45 74.34
WARNING: Cancer - www.P65Warnings.ca.gov
New Battery Bus Bar Kit allows multiple connection points that result in
clean and direct connections for various electrical power needs. This will
eliminate stacking of ring terminals and reduce corrosion and loose
connections resulting in poor or faulty electrical connections.
Kit includes a 3/8 inch and a 5/16 inch mounting plate made of brass with all the
fasteners needed for multiple connections. This kit also includes a positive (red)
84- 88439A26 32.55 and negative (black) cover that snaps to the plate and provides protection to the
battery connections. (ABYC compliant)
Single 12 ft. negative cable. 4 Gague with ring terminals
Any 12 volt battery that has a 3/8 inch and 5/16 inch pmounting stud
