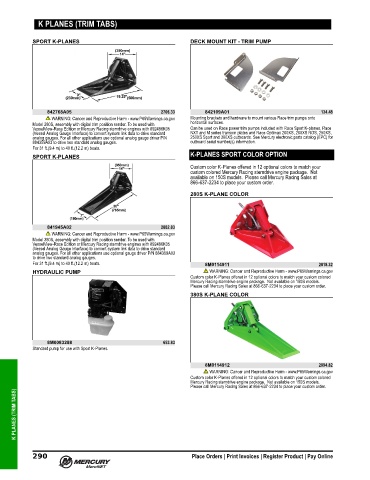

Page 303 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477
P. 303

K PLANES (TRIM TABS)


            SPORT K-PLANES                                      DECK MOUNT KIT - TRIM PUMP












                 842768A05                            2706.33        842109A01                             134.48
                   WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov  Mounting brackets and hardware to mount various Race trim pumps onto
            Model 280S, assembly with digital trim position sender. To be used with  horizontal surfaces.
            VesselView‑Race Edition or Mercury Racing sterndrive engines with 892486K05  Can be used on Race power trim pumps included with Race Sport K‑planes, Race
            (Vessel Analog Gauge Interface) to convert system link data to drive standard  NXT and M series transom plates and Race Optimax 200XS, 200XS ROS, 250XS,
            analog gauges. For all other applications use optional analog gauge driver P/N  250XS Sport and 300XS outboards. See Mercury electronic parts catalog (EPC) for
            884359A03 to drive two standard analog gauges.      outboard serial number(s) information.
            For 31 ft.(9.4 m) to 40 ft.(12.2 m) boats.
                                                                K-PLANES SPORT COLOR OPTION
            SPORT K-PLANES
                                                                Custom color K‑Planes offered in 12 optional colors to match your
                                                                custom colored Mercury Racing sterndrive engine package.  Not
                                                                available on 150S models.  Please call Mercury Racing Sales at
                                                                866‑637‑2234 to place your custom order.
                                                                280S K-PLANE COLOR





                 841945A02                            2882.83
                   WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
            Model 380S, assembly with digital trim position sender. To be used with
            VesselView‑Race Edition or Mercury Racing sterndrive engines with 892486K05
            (Vessel Analog Gauge Interface) to convert system link data to drive standard
            analog gauges. For all other applications use optional gauge driver P/N 884359A03
            to drive two standard analog gauges.
            For 31 ft.(9.4 m) to 40 ft.(12.2 m) boats.               8M0114911                            2818.32
            HYDRAULIC PUMP                                             WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
                                                                Custom color K‑Planes offered in 12 optional colors to match your custom colored
                                                                Mercury Racing sterndrive engine package.  Not available on 150S models.
                                                                Please call Mercury Racing Sales at 866‑637‑2234 to place your custom order.
                                                                380S K-PLANE COLOR








                 8M0083288                             653.83
            Standard pump for use with Sport K‑Planes.


                                                                     8M0114912                            2994.82
                                                                       WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
                                                                Custom color K‑Planes offered in 12 optional colors to match your custom colored
                                                                Mercury Racing sterndrive engine package.  Not available on 150S models.
                                                                Please call Mercury Racing Sales at 866‑637‑2234 to place your custom order.
      K PLANES (TRIM TABS)
