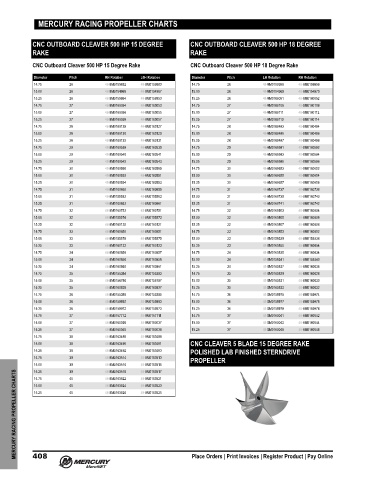

Page 421 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

MERCURY RACING PROPELLER CHARTS

CNC OUTBOARD CLEAVER 500 HP 15 DEGREE CNC OUTBOARD CLEAVER 500 HP 18 DEGREE
RAKE RAKE

CNC Outboard Cleaver 500 HP 15 Degree Rake CNC Outboard Cleaver 500 HP 18 Degree Rake

Diameter Pitch RH Rotation L0H Rotation Diameter Pitch LH Rotation RH Rotation
14.75 26 48-8M0159882 48-8M0159883 14.75 26 48-8M0159955 48-8M0159956
15.00 26 48-8M0154968 48-8M0154967 15.00 26 48-8M0154969 48-8M0154970
15.25 26 48-8M0159954 48-8M0159953 15.25 26 48-8M0160051 48-8M0160052
14.75 27 48-8M0160054 48-8M0160053 14.75 27 48-8M0160105 48-8M0160106
15.00 27 48-8M0160056 48-8M0160055 15.00 27 48-8M0160111 48-8M0160112
15.25 27 48-8M0160058 48-8M0160057 15.25 27 48-8M0160113 48-8M0160114
14.75 28 48-8M0160128 48-8M0160127 14.75 28 48-8M0160483 48-8M0160484
15.00 28 48-8M0160130 48-8M0160129 15.00 28 48-8M0160485 48-8M0160486
15.25 28 48-8M0160132 48-8M0160131 15.25 28 48-8M0160487 48-8M0160488
14.75 29 48-8M0160538 48-8M0160539 14.75 29 48-8M0160581 48-8M0160582
15.00 29 48-8M0160540 48-8M0160541 15.00 29 48-8M0160583 48-8M0160584
15.25 29 48-8M0160542 48-8M0160543 15.25 29 48-8M0160585 48-8M0160586
14.75 30 48-8M0160590 48-8M0160589 14.75 30 48-8M0160653 48-8M0160652
15.00 30 48-8M0160592 48-8M0160591 15.00 30 48-8M0160655 48-8M0160654
15.25 30 48-8M0160594 48-8M0160593 15.25 30 48-8M0160657 48-8M0160656
14.75 31 48-8M0160660 48-8M0160659 14.75 31 48-8M0160737 48-8M0160738
15.00 31 48-8M0155582 48-8M0155583 15.00 31 48-8M0160739 48-8M0160740
15.25 31 48-8M0160662 48-8M0160661 15.25 31 48-8M0160741 48-8M0160742
14.75 32 48-8M0160752 48-8M0160751 14.75 32 48-8M0160803 48-8M0160804
15.00 32 48-8M0155574 48-8M0155573 15.00 32 48-8M0160805 48-8M0160806
15.25 32 48-8M0160120 48-8M0160121 15.25 32 48-8M0160807 48-8M0160808
14.75 33 48-8M0160850 48-8M0160851 14.75 33 48-8M0160853 48-8M0160852
15.00 33 48-8M0155576 48-8M0155575 15.00 33 48-8M0159339 48-8M0159338
15.25 33 48-8M0160122 48-8M0160123 15.25 33 48-8M0160855 48-8M0160854
14.75 34 48-8M0160856 48-8M0160857 14.75 34 48-8M0160835 48-8M0160834
15.00 34 48-8M0160858 48-8M0160859 15.00 34 48-8M0159341 48-8M0159340
15.25 34 48-8M0160860 48-8M0160861 15.25 34 48-8M0160837 48-8M0160836
14.75 35 48-8M0155384 48-8M0155383 14.75 35 48-8M0160829 48-8M0160828
15.00 35 48-8M0156788 48-8M0156787 15.00 35 48-8M0160831 48-8M0160830
15.25 35 48-8M0160826 48-8M0160827 15.25 35 48-8M0160833 48-8M0160832
14.75 36 48-8M0155386 48-8M0155385 14.75 36 48-8M0159975 48-8M0159974
15.00 36 48-8M0159892 48-8M0159893 15.00 36 48-8M0159977 48-8M0159976
15.25 36 48-8M0159972 48-8M0159973 15.25 36 48-8M0159979 48-8M0159978
14.75 37 48-8M0157712 48-8M0157711 14.75 37 48-8M0160041 48-8M0160042
15.00 37 48-8M0160038 48-8M0160037 15.00 37 48-8M0160043 48-8M0160044
15.25 37 48-8M0160040 48-8M0160039 15.25 37 48-8M0160045 48-8M0160046
14.75 38 48-8M0163488 48-8M0163489
15.00 38 48-8M0163490 48-8M0163491 CNC CLEAVER 5 BLADE 15 DEGREE RAKE
15.25 38 48-8M0163492 48-8M0163493 POLISHED LAB FINISHED STERNDRIVE
14.75 39 48-8M0163514 48-8M0163513 PROPELLER
15.00 39 48-8M0163516 48-8M0163515
MERCURY RACING PROPELLER CHARTS 408 40 48-8M0163526 48-8M0163525 Place Orders | Print Invoices | Register Product | Pay Online
39
48-8M0163518
15.25
48-8M0163517
48-8M0163522
48-8M0163521
14.75
40
15.00
48-8M0163523
40
48-8M0163524
15.25
