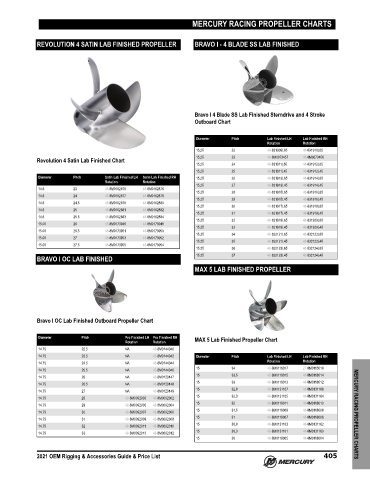

Page 418 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

MERCURY RACING PROPELLER CHARTS

REVOLUTION 4 SATIN LAB FINISHED PROPELLER BRAVO I - 4 BLADE SS LAB FINISHED

Bravo I 4 Blade SS Lab Finished Sterndrive and 4 Stroke
Outboard Chart

Diameter Pitch Lab Finished LH Lab Finished RH
Rotation Rotation
15.25 22 48-831909L65 48-831910L65
15.25 23 48-8M0073457 48-8M0073456
Revolution 4 Satin Lab Finished Chart
15.25 24 48-831911L65 48-831912L65
15.25 25 48-831911L45 48-831912L45
Diameter Pitch Satin Lab Finished LH Satin Lab Finished RH 15.25 26 48-831913L65 48-831914L65
Rotation Rotation
15.25 27 48-831913L45 48-831914L45
14.6 23 48-8M0162875 48-8M0162876
15.25 28 48-831915L65 48-831916L65
14.6 24 48-8M0162877 48-8M0162878
15.25 29 48-831915L45 48-831916L45
14.6 24.5 48-8M0162879 48-8M0162880
15.25 30 48-831917L65 48-831918L65
14.6 25 48-8M0162881 48-8M0162882
15.25 31 48-831917L45 48-831918L45
14.6 25.5 48-8M0162883 48-8M0162884
15.25 32 48-831919L65 48-831920L65
15.00 26 48-8M0173949 48-8M0173948
15.25 33 48-831919L45 48-831920L45
15.00 26.5 48-8M0173951 48-8M0173950
15.25 34 48-832121L65 48-832122L65
15.00 27 48-8M0173953 48-8M0173952
15.25 35 48-832121L45 48-832122L45
15.00 27.5 48-8M0173955 48-8M0173954
15.25 36 48-832123L65 48-832124L65
15.25 37 48-832123L45 48-832124L45
BRAVO I OC LAB FINISHED
MAX 5 LAB FINISHED PROPELLER

Bravo I OC Lab Finished Outboard Propeller Chart

Diameter Pitch Pro Finished LH Pro Finished RH MAX 5 Lab Finished Propeller Chart
Rotation Rotation
14.75 22.5 NA 48-8M0144040
14.75 23.5 NA 48-8M0144042 Diameter Pitch Lab Finished LH Lab Finished RH
14.75 24.5 NA 48-8M0144044 Rotation Rotation
14.75 25.5 NA 48-8M0144046 15 34 48-8M0118017 27-8M0115016
15 33.5 48-8M0118015 48-8M0118014
14.75 26 NA 48-8M0129147
14.75 26.5 NA 48-8M0129148 15 33 48-8M0118013 48-8M0118012
15 32.8 48-8M0131167 48-8M0131166
14.75 27 NA 48-8M0129149
14.75 28 48-8M0092003 48-8M0092002 15 32.3 48-8M0131165 48-8M0131164
15 32 48-8M0118011 48-8M0118010
14.75 29 48-8M0092005 48-8M0092004
14.75 30 48-8M0092007 48-8M0092006 15 31.5 48-8M0118009 48-8M0118008
15 31 48-8M0118007 48-8M0118006 MERCURY RACING PROPELLER CHARTS
14.75 31 48-8M0092009 48-8M0092008
14.75 32 48-8M0092011 48-8M0092010 15 30.8 48-8M0131163 48-8M0131162
14.75 33 48-8M0092013 48-8M0092012 15 30.3 48-8M0131161 48-8M0131160
15 30 48-8M0118005 48-8M0118004

2021 OEM Rigging & Accessories Guide & Price List 405
