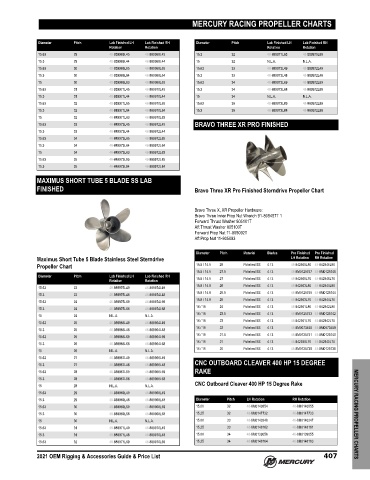

Page 420 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

MERCURY RACING PROPELLER CHARTS

Diameter Pitch Lab Finished LH Lab Finished RH Diameter Pitch Lab Finished LH Lab Finished RH
Rotation Rotation Rotation Rotation
15.63 29 48-889969L45 48-889968L45 15.3 32 48-889971L68 48-889970L68
15.3 29 48-889969L44 48-889968L44 15 32 N.L.A. N.L.A.
15.63 30 48-889969L65 48-889968L65 15.63 33 48-889973L49 48-889972L49
15.3 30 48-889969L64 48-889968L64 15.3 33 48-889973L48 48-889972L48
15 30 48-889969L63 48-889968L63 15.63 34 48-889973L69 48-889972L69
15.63 31 48-889971L45 48-889970L45 15.3 34 48-889973L68 48-889972L68
15.3 31 48-889971L44 48-889970L44 15 34 N.L.A. N.L.A.
15.63 32 48-889971L65 48-889970L65 15.63 35 48-889973L89 48-889972L89
15.3 32 48-889971L64 48-889970L64 15.3 35 48-889973L88 48-889972L88
15 32 48-889971L63 48-889970L63
15.63 33 48-889973L45 48-889972L45 BRAVO THREE XR PRO FINISHED
15.3 33 48-889973L44 48-889972L44
15.63 34 48-889973L65 48-889972L65
15.3 34 48-889973L64 48-889972L64
15 34 48-889973L63 48-889972L63
15.63 35 48-889973L85 48-889972L85
15.3 35 48-889973L84 48-889972L84
MAXIMUS SHORT TUBE 5 BLADE SS LAB
FINISHED Bravo Three XR Pro Finished Sterndrive Propeller Chart

Bravo Three X, XR Propeller Hardware:
Bravo Three Inner Prop Nut Wrench 91‑805457T 1
Forward Thrust Washer 805101T
Aft Thrust Washer 805100T
Forward Prop Nut 11‑805092T
Aft Prop Nut 11‑805093

Diameter Pitch Material Blades Pro Finished Pro Finished
Maximus Short Tube 5 Blade Stainless Steel Sterndrive LH Rotation RH Rotation
Propeller Chart 15.5 / 14.5 28 Polished SS 4 / 3 48-842945L80 48-842946L80
15.5 / 14.5 27.5 Polished SS 4 / 3 48-8M0125747 48-8M0125746
Diameter Pitch Lab Finished LH Lab Finished RH
Rotation Rotation 15.5 / 14.5 27 Polished SS 4 / 3 48-842945L70 48-842946L70
15.8 / 14.8 26 Polished SS 4 / 3 48-842943L80 48-842944L80
15.63 23 48-889975L49 48-889974L49
15.8 / 14.8 25.5 Polished SS 4 / 3 48-8M0125745 48-8M0125744
15.3 23 48-889975L48 48-889974L48
15.63 24 48-889975L69 48-889974L69 15.8 / 14.8 25 Polished SS 4 / 3 48-842943L70 48-842944L70
16 / 15 24 Polished SS 4 / 3 48-842941L80 48-842942L80
15.3 24 48-889975L68 48-889974L68
15 24 N.L.A. N.L.A. 16 / 15 23.5 Polished SS 4 / 3 48-8M0125743 48-8M0125742
16 / 15 23 Polished SS 4 / 3 48-842941L70 48-842942L70
15.63 25 48-889965L49 48-889964L49
15.3 25 48-889965L48 48-889964L48 16 / 15 22 Polished SS 4 / 3 48-8M0073458 48-8M0073459
16 / 15 21.5 Polished SS 4 / 3 48-8M0125741 48-8M0125740
15.63 26 48-889965L69 48-889964L69
16 / 15 21 Polished SS 4 / 3 48-842939L70 48-842940L70
15.3 26 48-889965L68 48-889964L68
16 / 15 20 Polished SS 4 / 3 48-8M0125739 48-8M0125738
15 26 N.L.A. N.L.A.
15.63 27 48-889967L49 48-889966L49
15.3 27 48-889967L48 48-889966L48 CNC OUTBOARD CLEAVER 400 HP 15 DEGREE
15.63 28 48-889967L69 48-889966L69 RAKE
15.3 28 48-889967L68 48-889966L68
15 28 N.L.A. N.L.A. CNC Outboard Cleaver 400 HP 15 Degree Rake
15.63 29 48-889969L49 48-889968L49
15.3 29 48-889969L48 48-889968L48 Diameter Pitch LH Rotation RH Rotation
15.63 30 48-889969L69 48-889968L69 15.00 32 48-8M0140854 48-8M0140855
15.3 30 48-889969L68 48-889968L68 15.25 32 48-8M0147732 48-8M0147733 MERCURY RACING PROPELLER CHARTS
15 30 N.L.A. N.L.A. 15.00 33 48-8M0140248 48-8M0140247
15.63 31 48-889971L49 48-889970L49 15.25 33 48-8M0148162 48-8M0148161
15.3 31 48-889971L48 48-889970L48 15.00 34 48-8M0139056 48-8M0139055
15.63 32 48-889971L69 48-889970L69 15.25 34 48-8M0148164 48-8M0148163
2021 OEM Rigging & Accessories Guide & Price List 407
