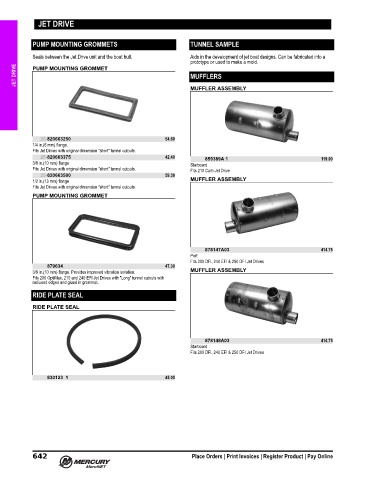

Page 655 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

JET DRIVE

PUMP MOUNTING GROMMETS TUNNEL SAMPLE

Seals between the Jet Drive unit and the boat hull. Aids in the development of jet boat designs. Can be fabricated into a
prototype or used to make a mold.
JET DRIVE MUFFLERS
PUMP MOUNTING GROMMET

MUFFLER ASSEMBLY

25-820663250 54.60
1/4 in.(6 mm) flange.
Fits Jet Drives with original dimension "short" tunnel cutouts.
25-820663375 42.40 859389A 1 119.00
3/8 in.(10 mm) flange Starboard
Fits Jet Drives with original dimension "short" tunnel cutouts. Fits 210 Carb Jet Drive
25-820663500 59.30
1/2 in.(13 mm) flange MUFFLER ASSEMBLY
Fits Jet Drives with original dimension "short" tunnel cutouts.
PUMP MOUNTING GROMMET

878147A03 414.75
Port
Fits 200 DFI, 240 EFI & 250 DFI Jet Drives
879634 47.30
3/8 in.(10 mm) flange. Provides improved vibration isolation. MUFFLER ASSEMBLY
Fits 200 OptiMax, 210 and 240 EFI Jet Drives with "Long" tunnel cutouts with
radiused edges and glued in grommet.
RIDE PLATE SEAL

RIDE PLATE SEAL

878148A03 414.75
Starboard
Fits 200 DFI, 240 EFI & 250 DFI Jet Drives

830123 1 45.05
