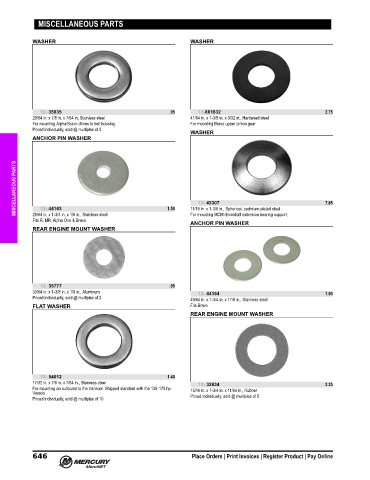

Page 659 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

MISCELLANEOUS PARTS

WASHER WASHER

12- 35935 .95 12-861832 2.75
29/64 in. x 7/8 in. x 7/64 in, Stainless steel 41/64 in. x 1‑3/8 in. x 3/32 in., Hardened steel
For mounting Alpha/Bravo drives to bell housing. For mounting Bravo upper pinion gear
Priced individually, sold @ multiples of 5
WASHER
ANCHOR PIN WASHER

MISCELLANEOUS PARTS 12- 42307 7.85

12- 44163
For mounting MCM driveshaft extension bearing support.
29/64 in. x 1‑3/4 in. x 1/8 in., Stainless steel
Fits R, MR, Alpha One & Bravo 1.50 11/16 in. x 1‑3/8 in., Spherical, cadmium plated steel
ANCHOR PIN WASHER
REAR ENGINE MOUNT WASHER

12- 35777 .95
33/64 in. x 1‑3/8 in. x 1/8 in., Aluminum 12- 44164 1.60
Priced individually, sold @ multiples of 2 49/64 in. x 1‑3/4 in. x 1/16 in., Stainless steel
FLAT WASHER Fits Bravo
REAR ENGINE MOUNT WASHER

12- 54012 1.40
17/32 in. x 7/8 in. x 7/64 in., Stainless steel 12- 32834 2.25
For mounting an outboard to the transom. Shipped standard with the 135‑175 hp. 15/16 in. x 1‑3/4 in. x 11/64 in., Rubber
Verado.
Priced individually, sold @ multiples of 10 Priced individually, sold @ multiples of 5
