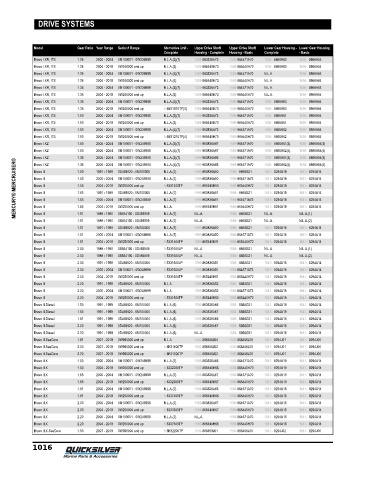

Page 1025 - Quicksilver Product Guide (2020) - 8M0163242

DRIVE SYSTEMS

Model Gear Ratio Year Range Serial # Range Sterndrive Unit - Upper Drive Shaft Upper Drive Shaft Lower Gear Housing - Lower Gear Housing
Complete Housing - Complete Housing - Basic Complete - Basic
Bravo I XR, ITS 1.26 2000 - 2004 0M100001 - 0W239999 N.L.A.(3)(7) 1589-863836A73 1589-864571A70 1656- 8866A80 1656- 8866A54
Bravo I XR, ITS 1.26 2004 - 2019 0W240000 and up N.L.A.(3) 1589-865440H73 1589-865440H70 1656- 8866A80 1656- 8866A54
Bravo I XR, ITS 1.26 2000 - 2004 0M100001 - 0W239999 N.L.A.(4)(7) 1589-863836A73 1589-864571A70 N.L.A. 1656- 8866A64
Bravo I XR, ITS 1.26 2004 - 2019 0W240000 and up N.L.A.(4) 1589-865440H73 1589-865440H70 N.L.A. 1656- 8866A64
Bravo I XR, ITS 1.35 2000 - 2004 0M100001 - 0W239999 N.L.A.(3)(7) 1589-863836A73 1589-864571A70 N.L.A. 1656- 8866A54
Bravo I XR, ITS 1.35 2004 - 2019 0W240000 and up N.L.A.(3) 1589-865440H73 1589-865440H70 N.L.A. 1656- 8866A54
Bravo I XR, ITS 1.35 2000 - 2004 0M100001 - 0W239999 N.L.A.(4)(7) 1589-863836A73 1589-864571A70 1656- 8866A83 1656- 8866A64
Bravo I XR, ITS 1.35 2004 - 2019 0W240000 and up 5-5E31910TP(4) 1589-865440H73 1589-865440H70 1656- 8866A83 1656- 8866A64
Bravo I XR, ITS 1.50 2000 - 2004 0M100001 - 0W239999 N.L.A.(3)(7) 1589-863836A73 1589-864571A70 1656- 8866A61 1656- 8866A54
Bravo I XR, ITS 1.50 2004 - 2019 0W240000 and up N.L.A.(3) 1589-865440H73 1589-865440H70 1656- 8866A61 1656- 8866A54
Bravo I XR, ITS 1.50 2000 - 2004 0M100001 - 0W239999 N.L.A.(4)(7) 1589-863836A73 1589-864571A70 1656- 8866A62 1656- 8866A64
Bravo I XR, ITS 1.50 2004 - 2019 0W240000 and up 5-5E31210TP(4) 1589-865440H73 1589-865440H70 1656- 8866A62 1656- 8866A64
Bravo I XZ 1.50 2000 - 2004 0M100001 - 0W249999 N.L.A.(3)(7) 1589-863836A67 1589-864571A70 1656- 8866A61(3) 1656- 8866A54(3)
Bravo I XZ 1.50 2000 - 2004 0M100001 - 0W249999 N.L.A.(4)(7) 1589-863836A67 1589-864571A70 1656- 8866A62(4) 1656- 8866A64(4)
Bravo I XZ 1.36 2000 - 2004 0M100001 - 0W249999 N.L.A.(3)(7) 1589-863836A66 1589-864571A70 1656- 8866A61(3) 1656- 8866A54(3)
MERCURY® MERCRUISER® Bravo II 1.50 2000 - 2004 0M100001 - 0W249999 N.L.A.(7) 1589-863836A50 1589-864571A72 1641- 8294A19 1641- 8294A14
2000 - 2004
1589-864571A70
1589-863836A66
0M100001 - 0W249999
N.L.A.(4)(7)
1656- 8866A64(4)
Bravo I XZ
1.36
1656- 8866A62(4)
1.50
1991 - 1999
1589- 8868G21
1641- 8294A19
1641- 8294A14
0D469920 - 0M100000
N.L.A.(7)
1589-863836A50
Bravo II
1589-865440H50
1589-865440H72
1641- 8294A19
1.50
5-5331200TP
2004 - 2019 0W250000 and up
Bravo II
1641- 8294A14
1991 - 1999
1589-863836A51
0D469920 - 0M100000
N.L.A.(7)
1641- 8294A19
Bravo II
1.65
1641- 8294A14
1589- 8868G21
2000 - 2004
1641- 8294A14
1641- 8294A19
1589-864571A72
Bravo II
0M100001 - 0W249999
N.L.A.(7)
1589-863836A51
1.65
Bravo II
Bravo II
N.L.A.
N.L.A.(1)
N.L.A.(7)
0B664190 - 0D469919
1988 - 1990
N.L.A.
1.81
1589- 8868G21
N.L.A.
N.L.A.(7)
N.L.A.
1589- 8868G21
Bravo II 1.65 2004 - 2019 0W250000 and up N.L.A. 1589-865440H51 1589-865440H72 1641- 8294A19 1641- 8294A14
N.L.A.(2)
0B664190 - 0D469919
1.81
1988 - 1990
Bravo II 1.81 1991 - 1999 0D469920 - 0M100000 N.L.A.(7) 1589-863836A50 1589- 8868G21 1641- 8294A16 1641- 8294A14
Bravo II 1.81 2000 - 2004 0M100001 - 0W249999 N.L.A.(7) 1589-863836A50 1589-864571A72 1641- 8294A16 1641- 8294A14
Bravo II 1.81 2004 - 2019 0W250000 and up 5-5331400TP 1589-865440H01 1589-865440H72 1641- 8294A16 1641- 8294A14
Bravo II 2.00 1988 - 1990 0B664190 - 0D469919 5-5331600LP N.L.A. 1589- 8868G21 N.L.A. N.L.A.(1)
Bravo II 2.00 1988 - 1990 0B664190 - 0D469919 5-5331600LP N.L.A. 1589- 8868G21 N.L.A. N.L.A.(2)
Bravo II 2.00 1991 - 1999 0D469920 - 0M100000 5-5331600LP 1589-863836A51 1589- 8868G21 1641- 8294A16 1641- 8294A14
Bravo II 2.00 2000 - 2004 0M100001 - 0W249999 5-5331600LP 1589-863836A51 1589-864571A72 1641- 8294A16 1641- 8294A14
Bravo II 2.00 2004 - 2019 0W250000 and up 5-5331600TP 1589-865440H51 1589-865440H72 1641- 8294A16 1641- 8294A14
Bravo II 2.20 1991 - 1999 0D469920 - 0M100000 N.L.A. 1589-863836A52 1589- 8868G21 1641- 8294A16 1641- 8294A14
Bravo II 2.20 2000 - 2004 0M100001 - 0W249999 N.L.A. 1589-863836A52 1589-864571A72 1641- 8294A16 1641- 8294A14
Bravo II 2.20 2004 - 2019 0W250000 and up 5-5331500TP 1589-865440H52 1589-865440H72 1641- 8294A16 1641- 8294A14
Bravo II-Diesel 1.50 1991 - 1999 0D469920 - 0M100000 N.L.A.(6) 1589-863836A66 1589- 8868G21 1641- 8294A19 1641- 8294A14
Bravo II-Diesel 1.65 1991 - 1999 0D469920 - 0M100000 N.L.A.(6) 1589-863836A67 1589- 8868G21 1641- 8294A19 1641- 8294A14
Bravo II-Diesel 1.81 1991 - 1999 0D469920 - 0M100000 N.L.A.(6) 1589-863836A66 1589- 8868G21 1641- 8294A16 1641- 8294A14
Bravo II-Diesel 2.00 1991 - 1999 0D469920 - 0M100000 N.L.A.(6) 1589-863836A67 1589- 8868G21 1641- 8294A16 1641- 8294A14
Bravo II-Diesel 2.20 1991 - 1999 0D469920 - 0M100000 N.L.A.(6) N.L.A. 1589- 8868G21 1641- 8294A16 1641- 8294A14
Bravo II-SeaCore 1.81 2007 - 2019 0W995000 and up N.L.A. 1500-866458J04 1500-866458J00 1641- 8294J01 1641- 8294J00
Bravo II-SeaCore 2.00 2007 - 2019 0W995000 and up 5-5K31600TP 1500-866458J02 1500-866458J00 1641- 8294J01 1641- 8294J00
Bravo II-SeaCore 2.20 2007 - 2019 0W995000 and up 5-5K31500TP 1500-866458J03 1500-866458J00 1641- 8294J01 1641- 8294J00
Bravo II X 1.50 2000 - 2004 0M100001 - 0W249999 N.L.A.(7) 1589-863836A66 1589-864571A70 1641- 8294A19 1641- 8294A14
Bravo II X 1.50 2004 - 2019 0W250000 and up 5-5332200TP 1589-865440H66 1589-865440H70 1641- 8294A19 1641- 8294A14
Bravo II X 1.65 2000 - 2004 0M100001 - 0W249999 N.L.A.(7) 1589-863836A67 1589-864571A70 1641- 8294A19 1641- 8294A14
Bravo II X 1.65 2004 - 2019 0W250000 and up 5-5332300TP 1589-865440H67 1589-865440H70 1641- 8294A19 1641- 8294A14
Bravo II X 1.81 2000 - 2004 0M100001 - 0W249999 N.L.A.(7) 1589-863836A66 1589-864571A70 1641- 8294A16 1641- 8294A14
Bravo II X 1.81 2004 - 2019 0W250000 and up 5-5337400TP 1589-865440H66 1589-865440H70 1641- 8294A16 1641- 8294A14
Bravo II X 2.00 2000 - 2004 0M100001 - 0W249999 N.L.A.(7) 1589-863836A67 1589-864571A70 1641- 8294A16 1641- 8294A14
Bravo II X 2.00 2004 - 2019 0W250000 and up 5-5337600TP 1589-865440H67 1589-865440H70 1641- 8294A16 1641- 8294A14
Bravo II X 2.20 2000 - 2004 0M100001 - 0W249999 N.L.A.(7) N.L.A. 1589-864571A70 1641- 8294A16 1641- 8294A14
Bravo II X 2.20 2004 - 2019 0W250000 and up 5-5337500TP 1589-865440H68 1589-865440H70 1641- 8294A16 1641- 8294A14
Bravo II X-SeaCore 1.50 2007 - 2019 0W995000 and up 5-5K32200TP 1500-866459J01 1500-866459J00 1641- 8294J02 1641- 8294J00
1016
