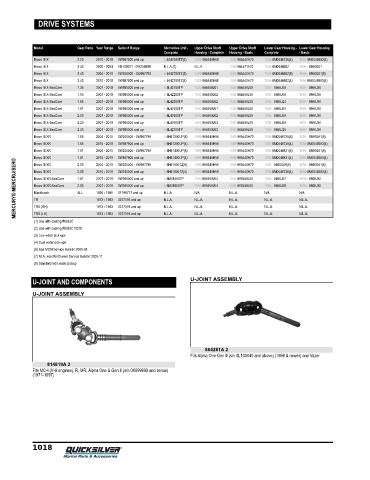

Page 1027 - Quicksilver Product Guide (2020) - 8M0163242

DRIVE SYSTEMS

Model Gear Ratio Year Range Serial # Range Sterndrive Unit - Upper Drive Shaft Upper Drive Shaft Lower Gear Housing - Lower Gear Housing
Complete Housing - Complete Housing - Basic Complete - Basic
Bravo III X 2.20 2010 - 2019 0W987800 and up 5-5447500TZ(4) 1589-865440H68 1589-865440H70 1656-8M0046738(4) 1656-8M0046683(4)
Bravo III X 2.43 2000 - 2004 0M100001 - 0W249999 N.L.A.(7) N.L.A. 1589-864571A70 1656-8M0046682 1656- 8866G01
Bravo III X 2.43 2004 - 2010 0W250000 - 0W987799 5-5442700TZ(8) 1589-865440H68 1589-865440H70 1656-8M0046682(8) 1656- 8866G01(8)
Bravo III X 2.43 2010 - 2019 0W987800 and up 5-5442700TZ(4) 1589-865440H68 1589-865440H70 1656-8M0046682(4) 1656-8M0046683(4)
Bravo III X-SeaCore 1.36 2007 - 2019 0W995000 and up 5-5L42100TP 1500-866459J01 1500-866459J00 1656- 8866J08 1656- 8866J30
Bravo III X-SeaCore 1.50 2007 - 2019 0W995000 and up 5-5L42200TP 1500-866459J02 1500-866459J00 1656- 8866J08 1656- 8866J30
Bravo III X-SeaCore 1.65 2007 - 2019 0W995000 and up 5-5L42300TP 1500-866459J02 1500-866459J00 1656- 8866J24 1656- 8866J30
Bravo III X-SeaCore 1.81 2007 - 2019 0W995000 and up 5-5L47400TP 1500-866459J01 1500-866459J00 1656- 8866J09 1656- 8866J30
Bravo III X-SeaCore 2.00 2007 - 2019 0W995000 and up 5-5L47600TP 1500-866459J02 1500-866459J00 1656- 8866J09 1656- 8866J30
Bravo III X-SeaCore 2.20 2007 - 2019 0W995000 and up 5-5L47500TP 1500-866459J03 1500-866459J00 1656- 8866J09 1656- 8866J30
Bravo III X-SeaCore 2.43 2007 - 2019 0W995000 and up 5-5L42700TP 1500-866459J03 1500-866459J00 1656- 8866J25 1656- 8866J30
Bravo III XR 1.65 2004 - 2010 0W240000 - 0W987799 5-5H41300UP(8) 1589-865440H56 1589-865440H70 1656-8M0046735(8) 1656- 8866G01(8)
Bravo III XR 1.65 2010 - 2019 0W987800 and up 5-5H41300UP(4) 1589-865440H56 1589-865440H70 1656-8M0046735(4) 1656-8M0046683(4)
Bravo III XR 1.81 2004 - 2010 0W240000 - 0W987799 5-5H41400UP(8) 1589-865440H56 1589-865440H70 1656-8M0046831(8) 1656- 8866G01(8)
Bravo III XR 1.81 2010 - 2019 0W897800 and up 5-5H41400UP(4) 1589-865440H56 1589-865440H70 1656-8M0046831(4) 1656-8M0046683(4)
MERCURY® MERCRUISER® Bravo III XR-SeaCore 1.81 2007 - 2019 0W995000 and up 5-5M41400TP 1500-866459J04 1500-866459J00 1656- 8866J07 1656- 8866J30
1589-865440H56
2.00
1589-865440H70
1656- 8866G09(8)
2004 - 2019 0W240000 - 0W987799
1656- 8866G01(8)
5-5H41600TZ(8)
Bravo III XR
1589-865440H70
2010 - 2019 0W240000 and up
1656-8M0046683(4)
1589-865440H56
Bravo III XR
2.00
1656-8M0046738(4)
5-5H41600TZ(4)
1500-866459J04
5-5M41600TP
2.00
2007 - 2019 0W995000 and up
1656- 8866J30
Bravo III XR-SeaCore
1656- 8866J09
1500-866459J00
N.L.A.
0F186717 and up
N/A
Blackhawk
N/A
N.L.A.
N/A
ALL
1994 - 1995
N.L.A.
N.L.A.
N.L.A.
N.L.A.
N.L.A.
TR
1973 - 1993

3377316 and up
TRS (RH)
N.L.A.
N.L.A.
TRS (LH)
N.L.A.
3377316 and up
N.L.A.
N.L.A.
1973 - 1993
(1) Use with casting #8293C 1973 - 1993 3377316 and up N.L.A. N.L.A. N.L.A. N.L.A. N.L.A.
(2) Use with casting #8293C1/C2S
(3) Low water pick-ups
(4) Dual water pick-ups
(6) See MCM Service Bulletin 2000-08
(7) NLA, see MerCruiser Service Bulletin 2005-11
(8) Standard side water pickup
U-JOINT AND COMPONENTS U-JOINT ASSEMBLY
U-JOINT ASSEMBLY
864281A 2
Fits Alpha One Gen II (s/n 0L100040 and above) (1998 & newer) and Vazer
814819A 2
Fits MC‑I (V‑8 engines), R, MR, Alpha One & Gen II (s/n 0K999999 and below)
(1971‑1997)
1018
