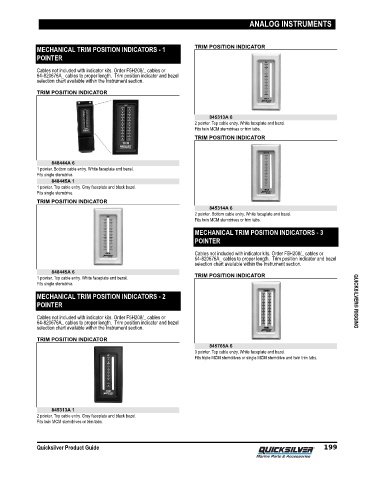

Page 208 - Quicksilver Product Guide (2020) - 8M0163242

ANALOG INSTRUMENTS

MECHANICAL TRIM POSITION INDICATORS - 1 TRIM POSITION INDICATOR
POINTER

Cables not included with indicator kits. Order F5H208/_ cables or
64‑820676A_ cables to proper length. Trim position indicator and bezel
selection chart available within the Instrument section.
TRIM POSITION INDICATOR

845313A 6
2 pointer. Top cable entry. White faceplate and bezel.
Fits twin MCM sterndrives or trim tabs.
TRIM POSITION INDICATOR

848444A 6
1 pointer. Bottom cable entry. White faceplate and bezel.
Fits single sterndrive.
848445A 1
1 pointer. Top cable entry. Gray faceplate and black bezel.
Fits single sterndrive.
TRIM POSITION INDICATOR
845314A 6
2 pointer. Bottom cable entry. White faceplate and bezel.
Fits twin MCM sterndrives or trim tabs.
MECHANICAL TRIM POSITION INDICATORS - 3
POINTER

Cables not included with indicator kits. Order F5H208/_ cables or
64‑820676A_ cables to proper length. Trim position indicator and bezel
selection chart available within the Instrument section.
848445A 6
1 pointer. Top cable entry. White faceplate and bezel. TRIM POSITION INDICATOR
Fits single sterndrive.
MECHANICAL TRIM POSITION INDICATORS - 2
POINTER QUICKSILVER® RIGGING

Cables not included with indicator kits. Order F5H208/_ cables or
64‑820676A_ cables to proper length. Trim position indicator and bezel
selection chart available within the Instrument section.
TRIM POSITION INDICATOR
845765A 6
3 pointer. Top cable entry. White faceplate and bezel.
Fits triple MCM sterndrives or single MCM sterndrive and twin trim tabs.

845313A 1
2 pointer. Top cable entry. Gray faceplate and black bezel.
Fits twin MCM sterndrives or trim tabs.

Quicksilver Product Guide 199
