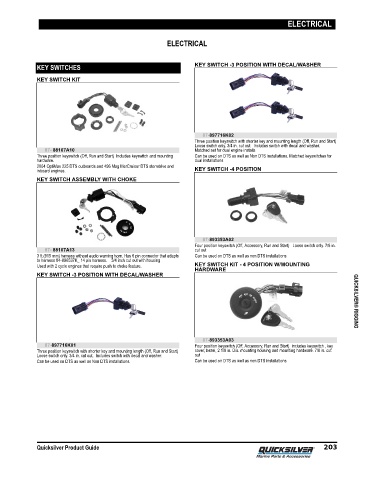

Page 212 - Quicksilver Product Guide (2020) - 8M0163242

ELECTRICAL

ELECTRICAL

KEY SWITCHES KEY SWITCH -3 POSITION WITH DECAL/WASHER

KEY SWITCH KIT

87-897716K02
Three position keyswitch with shorter key and mounting length (Off, Run and Start)
Loose switch only. 3/4 in. cut out. Includes switch with decal and washer.
87- 88107A10 Matched set for dual engine installs
Three position keyswitch (Off, Run and Start) Includes keyswitch and mounting Can be used on DTS as well as Non DTS installations. Matched keyswitches for
hardware. dual installations
2004 OptiMax 225 DTS outboards and 496 Mag MerCruiser DTS sterndrive and
inboard engines. KEY SWITCH -4 POSITION
KEY SWITCH ASSEMBLY WITH CHOKE

87-893353A02
Four position keyswitch (Off, Accessory, Run and Start) Loose switch only. 7/8 in.
87- 88107A13 cut out
3 ft.(915 mm) harness without audio warning horn. Has 6 pin connector that adapts Can be used on DTS as well as non DTS installations
to harness 84‑896537K_ 14 pin harness. 3/4 inch cut out with housing
Used with 2 cycle engines that require push to choke feature. KEY SWITCH KIT - 4 POSITION W/MOUNTING
HARDWARE
KEY SWITCH -3 POSITION WITH DECAL/WASHER QUICKSILVER® RIGGING

87-893353A03
87-897716K01 Four position keyswitch (Off, Accessory, Run and Start) Includes keyswitch , key
Three position keyswitch with shorter key and mounting length (Off, Run and Start) cover, bezel, 2 1/8 in. Dia. mounting housing and mounting hardware. 7/8 in. cut
Loose switch only. 3/4 in. cut out. Includes switch with decal and washer. out
Can be used on DTS as well as Non DTS installations. Can be used on DTS as well as non DTS installations

Quicksilver Product Guide 203
