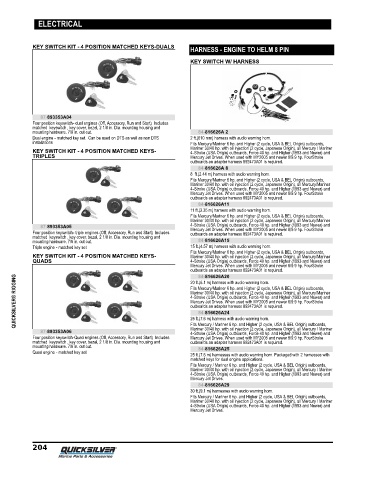

Page 213 - Quicksilver Product Guide (2020) - 8M0163242

ELECTRICAL

KEY SWITCH KIT - 4 POSITION MATCHED KEYS-DUALS
HARNESS - ENGINE TO HELM 8 PIN
KEY SWITCH W/ HARNESS

87-893353A04
Four position keyswitch‑ dual engines (Off, Accessory, Run and Start) Includes
matched keyswitch , key cover, bezel, 2 1/8 in. Dia. mounting housing and
mounting hardware. 7/8 in. cut out. 84-816626A 2
Dual engine ‑ matched key set. Can be used on DTS as well as non DTS 2 ft.(610 mm) harness with audio warning horn.
installations Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
KEY SWITCH KIT - 4 POSITION MATCHED KEYS- Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury / Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
TRIPLES Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke
outboards an adapter harness 892473A01 is required.
84-816626A 8
8 ft.(2.44 m) harness with audio warning horn.
Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury/Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke
outboards an adapter harness 892473A01 is required.
84-816626A11
11 ft.(3.35 m) harness with audio warning horn.
Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury/Mariner
87-893353A05 4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Four position keyswitch‑ triple engines (Off, Accessory, Run and Start) Includes Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke
outboards an adapter harness 892473A01 is required.
matched keyswitch , key cover, bezel, 2 1/8 in. Dia. mounting housing and
mounting hardware. 7/8 in. cut out. 84-816626A15
Triple engine ‑ matched key set 15 ft.(4.57 m) harness with audio warning horn.
Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
KEY SWITCH KIT - 4 POSITION MATCHED KEYS- Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury/Mariner
QUADS 4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke
outboards an adapter harness 892473A01 is required.
84-816626A20
QUICKSILVER® RIGGING Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
20 ft.(6.1 m) harness with audio warning horn.
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury/Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke
outboards an adapter harness 892473A01 is required.
84-816626A24
Fits Mercury / Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury / Mariner
87-893353A06 25 ft.(7.6 m) harness with audio warning horn.
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Four position keyswitch‑Quad engines (Off, Accessory, Run and Start) Includes Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke
matched keyswitch , key cover, bezel, 2 1/8 in. Dia. mounting housing and outboards an adapter harness 892473A01 is required.
mounting hardware. 7/8 in. cut out. 84-816626A25
Quad engine ‑ matched key set
25 ft.(7.6 m) harnesses with audio warning horn. Packaged with 2 harnesses with
matched keys for dual engine applications.
Fits Mercury / Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury / Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives.
84-816626A29
30 ft.(9.1 m) harnesses with audio warning horn.
Fits Mercury / Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury / Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives.
