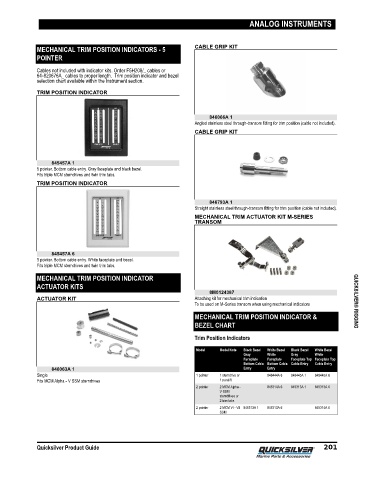

Page 210 - Quicksilver Product Guide (2020) - 8M0163242

ANALOG INSTRUMENTS

MECHANICAL TRIM POSITION INDICATORS - 5 CABLE GRIP KIT
POINTER

Cables not included with indicator kits. Order F5H208/_ cables or
64‑820676A_ cables to proper length. Trim position indicator and bezel
selection chart available within the Instrument section.
TRIM POSITION INDICATOR

846066A 1
Angled stainless steel through‑transom fitting for trim position (cable not included).
CABLE GRIP KIT

845457A 1
5 pointer. Bottom cable entry. Gray faceplate and black bezel.
Fits triple MCM sterndrives and twin trim tabs.
TRIM POSITION INDICATOR

846793A 1
Straight stainless steel through‑transom fitting for trim position (cable not included).
MECHANICAL TRIM ACTUATOR KIT M-SERIES
TRANSOM

845457A 6
5 pointer. Bottom cable entry. White faceplate and bezel.
Fits triple MCM sterndrives and twin trim tabs.
MECHANICAL TRIM POSITION INDICATOR
ACTUATOR KITS
8M0124387
ACTUATOR KIT Attaching kit for mechanical trim indication
To be used on M‑Series transom when using mechanical indicators QUICKSILVER® RIGGING
MECHANICAL TRIM POSITION INDICATOR &
BEZEL CHART

Trim Position Indicators

Model Model Note Black Bezel White Bezel Black Bezel White Bezel
Gray White Gray White
Faceplate Faceplate Faceplate Top Faceplate Top
Bottom Cable Bottom Cable Cable Entry Cable Entry
846063A 1 Entry Entry
Single 1 pointer 1 sterndrive or 848444A 6 848445A 1 848445A 6
Fits MCM Alpha ‑ V SSM sterndrives 1 paralift
2 pointer 2 MCM Alpha - 845314A 6 845313A 1 845313A 6
V SSM
sterndrives or
2 trim tabs
2 pointer 2 MCM VI - VII 845313A 1 845313A 6 845314A 6
SSM
