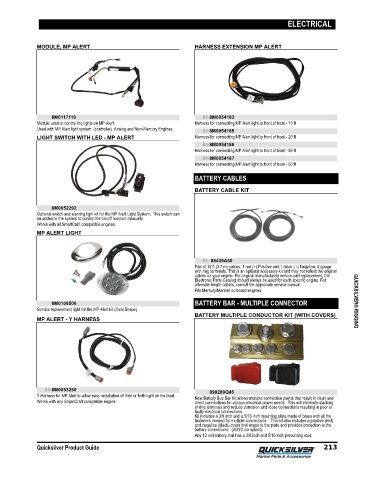

Page 222 - Quicksilver Product Guide (2020) - 8M0163242

ELECTRICAL

MODULE, MP ALERT HARNESS EXTENSION MP ALERT

8M0117116 84-8M0054183
Module used to control the lights on MP Alert. Harness for connecting MP Alert light to front of boat ‑ 10 ft
Used with MP Alert light system (controller) Analog and Non‑Mercury Engines 84-8M0054185
LIGHT SWITCH WITH LED - MP ALERT Harness for connecting MP Alert light to front of boat ‑ 20 ft
84-8M0054186
Harness for connecting MP Alert light to front of boat ‑ 30 ft
84-8M0054187
Harness for connecting MP Alert light to front of boat ‑ 50 ft

BATTERY CABLES

BATTERY CABLE KIT

8M0052292
Optional switch and warning light kit for the MP Alert Light System. This switch can
be added to the system to control the on‑off function manually.
Works with all SmartCraft compatible engines.
MP ALERT LIGHT

84- 88439A50
Pair of 12 ft.(3.7 m) cables, 1 red (+) Positive and 1 black ( ‑) Negative, 4 gauge
with ring terminals. This is an optional accessory kit and may not reflect the original
cables on your engine. For original manufactured service part replacement, the
Electronic Parts Catalog should always be used for each specific engine. For
alternate length cables, consult the approriate service manual.
Fits Mercury/Mariner outboard engines.

8M0109506 BATTERY BAR - MULTIPLE CONNECTOR QUICKSILVER® RIGGING
Service replacement light for the MP Alert kit (Oval Shape)
BATTERY MULTIPLE CONDUCTOR KIT (WITH COVERS)
MP ALERT - Y HARNESS

84-8M0053250 898289Q45
Y Harness for MP Alert to allow easy installation of third or forth light on the boat. New Battery Bus Bar Kit allows multiple connection points that result in clean and
Works with any SmartCraft compatible engine. direct connections for various electrical power needs. This will eliminate stacking
of ring terminals and reduce corrosion and loose connections resulting in poor or
faulty electrical connections.
Kit includes a 3/8 inch and a 5/16 inch mounting plate made of brass with all the
fasteners needed for multiple connections. This kit also includes a positive (red)
and negative (black) cover that snaps to the plate and provides protection to the
battery connections. (ABYC compliant)
Any 12 volt battery that has a 3/8 inch and 5/16 inch pmounting stud

Quicksilver Product Guide 213
