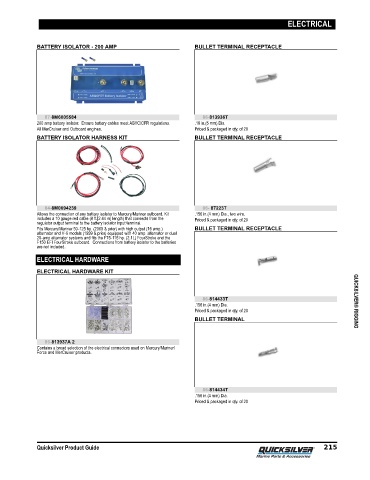

Page 224 - Quicksilver Product Guide (2020) - 8M0163242

ELECTRICAL

BATTERY ISOLATOR - 200 AMP BULLET TERMINAL RECEPTACLE

87-8M6005584 86-813936T
200 amp battery isolator. Ensure battery cables meet ABYC/CFR regulations. .18 in.(5 mm) Dia.
All MerCruiser and Outboard engines. Priced & packaged in qty. of 20
BATTERY ISOLATOR HARNESS KIT BULLET TERMINAL RECEPTACLE

84-8M0094239 86- 87223T
Allows the connection of any battery isolator to Mercury/Mariner outboard. Kit .156 in.(4 mm) Dia., two wire.
includes a 10 gauge red cable (8 ft.[2.44 m] length) that connects from the Priced & packaged in qty. of 20
regulator output terminal to the battery isolator input terminal.
Fits Mercury/Mariner 50‑125 hp. (2000 & prior) with high output (16 amp.) BULLET TERMINAL RECEPTACLE
alternator and V‑6 models (1999 & prior) equipped with 40 amp. alternator or dual
20‑amp alternator systems and fits the F75‑115 hp. (2.1L) FourStroke and the
F150 EFI FourStroke outboard. Connections from battery isolator to the batteries
are not included.
ELECTRICAL HARDWARE
ELECTRICAL HARDWARE KIT

86-814433T QUICKSILVER® RIGGING
.156 in.(4 mm) Dia.
Priced & packaged in qty. of 20
BULLET TERMINAL

86-813937A 2
Contains a broad selection of the electrical connectors used on Mercury/Mariner/
Force and MerCruiser products.

86-814434T
.156 in.(4 mm) Dia.
Priced & packaged in qty. of 20

Quicksilver Product Guide 215
