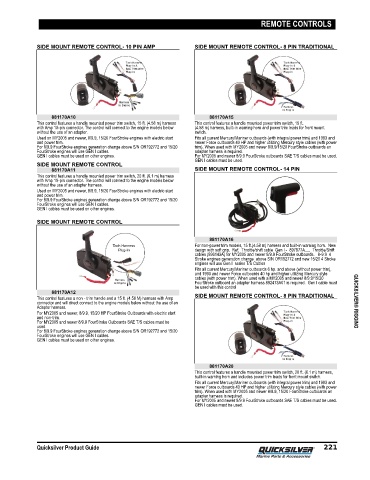

Page 230 - Quicksilver Product Guide (2020) - 8M0163242

REMOTE CONTROLS

SIDE MOUNT REMOTE CONTROL- 10 PIN AMP SIDE MOUNT REMOTE CONTROL- 8 PIN TRADITIONAL

881170A10 881170A15
This control features a handle mounted power trim switch, 15 ft. (4.58 m) harness This control features a handle mounted power trim switch, 15 ft.
with Amp 10‑pin connector. The control will connect to the engine models below (4.58 m) harness, built‑in warning horn and power trim leads for front mount
without the use of an adapter. switch.
Used on MY2005 and newer, 8/9.9, 15/20 FourStroke engines with electric start Fits all current Mercury/Mariner outboards (with integral power trim) and 1993 and
and power trim. newer Force outboards 40 HP and higher utilizing Mercury style cables (with power
For 8/9.9 FourStroke engines generation change above S/N OR192772 and 15/20 trim). When used with MY2005 and newer 8/9.9/15/20 FourStroke outboards an
FourStroke engines will use GEN I cables. adapter harness is required.
GEN I cables must be used on other engines. For MY2005 and newer 8/9.9 FourStroke outboards SAE T/S cables must be used.
GEN I cables must be used.
SIDE MOUNT REMOTE CONTROL
881170A11 SIDE MOUNT REMOTE CONTROL- 14 PIN
This control features a handle mounted power trim switch, 20 ft. (6.1 m) harness
with Amp 10‑pin connector. The control will connect to the engine models below
without the use of an adapter harness.
Used on MY2005 and newer, 8/9.9, 15/20 FourStroke engines with electric start
and power trim.
For 8/9.9 FourStroke engines generation change above S/N OR192772 and 15/20
FourStroke engines will use GEN I cables.
GEN I cables must be used on other engines.
SIDE MOUNT REMOTE CONTROL

881170A16
For non‑power trim models, 15 ft.(4.58 m) harness and built‑in warning horn. New
design with soft grip. Ref. Throttle/shift cable Gen I ‑ 897977A__. Throttle/Shift
cables (896143A) for MY2005 and newer 8/9.9 FourStroke outboards. 8‑9.9 4
Stroke engines generation change above S/N OR192772 and new 15/20 4 Stroke
engines will use Gen I series T/S Cables
Fits all current Mercury/Mariner outboards 6 hp. and above (without power trim),
and 1993 and newer Force outboards 40 hp and higher utilizing Mercury style
cables (with power trim). When used with a MY2005 and newer 8/9.9/15/20
FourStroke outboard an adapter harness 892473A01 is required. Gen I cable must
be used with this control
881170A12
This control features a non ‑ trim handle and a 15 ft. (4.58 M) harness with Amp SIDE MOUNT REMOTE CONTROL- 8 PIN TRADITIONAL
connector and will direct connect to the engine models below without the use of an QUICKSILVER® RIGGING
Adapter harness.
For MY2005 and newer, 8/9.9, 15/20 HP FourStroke Outboards with electric start
and non‑trim.
For MY2005 and newer 8/9.9 FourStroke Outboards SAE T/S cables must be
used.
For 8/9.9 FourStroke engines generation change above S/N OR192772 and 15/20
FourStroke engines will use GEN I cables.
GEN I cables must be used on other engines.

881170A20
This control features a handle mounted power trim switch, 20 ft. (6.1 m) harness,
built‑in warning horn and includes power trim leads for front mount switch.
Fits all current Mercury/Mariner outboards (with integral power trim) and 1993 and
newer Force outboards 40 HP and higher utilizing Mercury style cables (with power
trim). When used with MY2005 and newer 8/9.9, 15/20 FourStroke outboards an
adapter harness is required.
For MY2005 and newer 8/9.9 FourStroke outboards SAE T/S cables must be used.
GEN I cables must be used.
