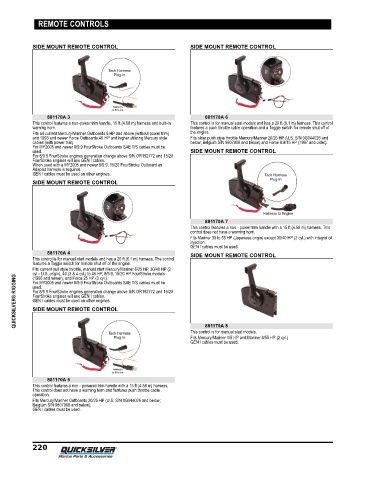

REMOTE CONTROLS

SIDE MOUNT REMOTE CONTROL SIDE MOUNT REMOTE CONTROL

881170A 3 881170A 6
This control features a non‑power trim handle, 15 ft.(4.58 m) harness and built‑in This control is for manual start models and has a 20 ft.(6.1 m) harness. This control
warning horn. features a push throttle cable operation and a Toggle switch for remote shut off of
Fits all current Mercury/Mariner Outboards 6 HP and above (without power trim) the engine.
and 1993 and newer Force Outboards 40 HP and higher utilizing Mercury style Fits older push style throttle Mercury/Mariner 20/25 HP (U.S. S/N 0G044026 and
cables (with power trim). below; Belgium S/N 9807908 and below) and Force 9.9/15 HP (1997 and older).
For MY2005 and newer 8/9.9 FourStroke Outboards SAE T/S cables must be
used. SIDE MOUNT REMOTE CONTROL
For 8/9.9 FourStroke engines generation change above S/N OR192772 and 15/20
FourStroke engines will use GEN I cables.
When used with a MY2005 and newer 8/9.9, 15/20 FourStroke Outboard an
Adapter harness is required.
GEN I cables must be used on other engines.
SIDE MOUNT REMOTE CONTROL

881170A 7
This control features a non ‑ power trim handle with a 15 ft.(4.58 m) harness. This
control does not have a warning horn.
Fits Mariner 30 to 55 HP (Japanese origin) except 30/40 HP (2 cyl.) with integral oil
injection.
GEN I cables must be used.
881170A 4 SIDE MOUNT REMOTE CONTROL
This control is for manual start models and has a 20 ft.(6.1 m) harness. The control
features a Toggle switch for remote shut off of the engine.
Fits current pull style throttle, manual start Mercury/Mariner 6/25 HP, 30/40 HP (2
cyl.‑ U.S. origin), 40 (3 & 4 cyl.) to 45 HP, 8/9.9, 15/20 HP FourStroke models
QUICKSILVER® RIGGING For 8/9.9 FourStroke engines generation change above S/N OR192772 and 15/20
(1996 and newer), and Force 25 HP (3 cyl.)
For MY2005 and newer 8/9.9 FourStroke Outboards SAE T/S cables must be
used.
FourStroke engines will use GEN I cables.
GEN I cables must be used on other engines.
SIDE MOUNT REMOTE CONTROL

881170A 8
This control is for manual start models.
Fits Mercury/Mariner 4/5 HP and Mariner 8/55 HP (2 cyl.)
GEN I cables must be used.

881170A 5
This control features a non ‑ powered trim handle with a 15 ft.(4.58 m) harness.
This control does not have a warning horn and features push throttle cable
operation.
Fits Mercury/Mariner Outboards 20/25 HP (U.S. S/N 0G044026 and below;
Belgium S/N 9807908 and below).
GEN I cables must be used.
