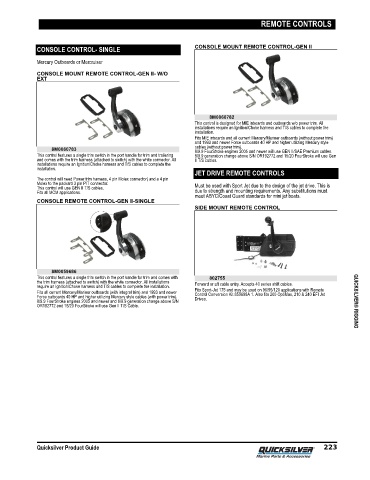

Page 232 - Quicksilver Product Guide (2020) - 8M0163242

REMOTE CONTROLS

CONSOLE CONTROL- SINGLE CONSOLE MOUNT REMOTE CONTROL-GEN II

Mercury Outboards or Mercruiser

CONSOLE MOUNT REMOTE CONTROL-GEN II- W/O
EXT

8M0060782
This control is designed for MIE inboards and outboards w/o power trim. All
installations require an Ignition/Choke harness and T/S cables to complete the
installation.
Fits MIE inboards and all current Mercury/Mariner outboards (without power trim)
and 1993 and newer Force outboards 40 HP and higher utilizing Mercury style
8M0060783 cables (without power trim).
8/9.9 FourStroke engines 2005 and newer will use GEN II/SAE Premium cables.
This control features a single trim switch in the port handle for trim and trailering 8/9.9 generation change above S/N OR192772 and 15/20 FourStroke will use Gen
and comes with the trim harness (attached to switch) with the white connector. All II T/S cables.
installations require an Ignition/Choke harness and T/S cables to complete the
installation.
JET DRIVE REMOTE CONTROLS
The control will need Power trim harness, 4 pin Molex connector) and a 4 pin
Molex to the packard 3 pin P/T connector. Must be used with Sport Jet due to the design of the jet drive. This is
This control will use GEN II T/S cables.
Fits all MCM applications. due to strength and mounting requirements. Any substitutions must
meet ABYC/Coast Guard standards for mini jet boats.
CONSOLE REMOTE CONTROL-GEN II-SINGLE
SIDE MOUNT REMOTE CONTROL

8M0059686
This control features a single trim switch in the port handle for trim and comes with 802755
the trim harness (attached to switch) with the white connector. All installations Forward or aft cable entry. Accepts 40 series shift cables.
require an Ignition/Choke harness and T/S cables to complete the installation.
Fits all current Mercury/Mariner outboards (with integral trim) and 1993 and newer Fits Sport‑Jet 175 and may be used on 90/95/120 applications with Remote
Control Conversion Kit 850698A 1. Also fits 200 OptiMax, 210 & 240 EFI Jet
Force outboards 40 HP and higher utilizing Mercury style cables (with power trim). Drives.
8/9.9 FourStroke engines 2005 and newer and 8/9.9 generation change above S/N QUICKSILVER® RIGGING
OR192772 and 15/20 FourStroke will use Gen II T/S Cable.
