INSTALLATION SPECIFICATIONS AND TOOLS

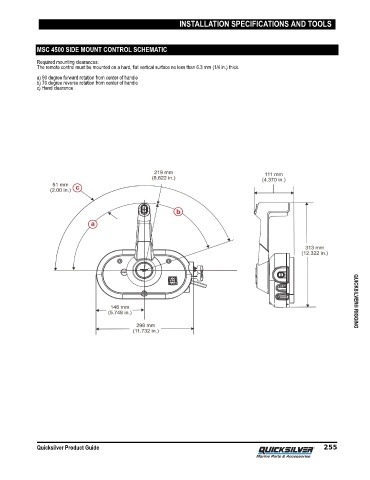

             MSC 4500 SIDE MOUNT CONTROL SCHEMATIC

             Required mounting clearances:
             The remote control must be mounted on a hard, flat vertical surface no less than 6.3 mm (1/4 in.) thick.
             a) 90 degree forward rotation from center of handle
             b) 70 degree reverse rotation from center of handle
             c) Hand clearance
