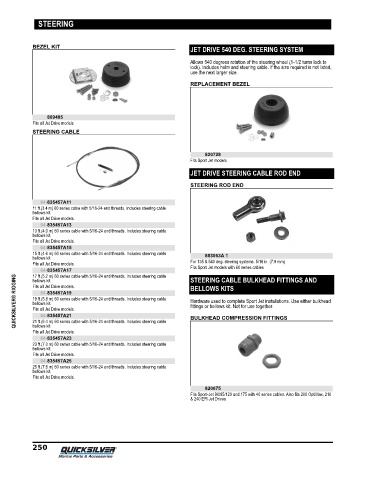

Page 259 - Quicksilver Product Guide (2020) - 8M0163242

STEERING

BEZEL KIT
JET DRIVE 540 DEG. STEERING SYSTEM
Allows 540 degrees rotation of the steering wheel (1‑1/2 turns lock to
lock). Includes helm and steering cable. If the size required is not listed,
use the next larger size.

REPLACEMENT BEZEL

809485
Fits all Jet Drive models
STEERING CABLE

820728
Fits Sport Jet models

JET DRIVE STEERING CABLE ROD END

STEERING ROD END

64-835457A11
11 ft.(3.4 m) 60 series cable with 5/16‑24 end threads. Includes steering cable
bellows kit.
Fits all Jet Drive models.
64-835457A13
13 ft.(4.0 m) 60 series cable with 5/16‑24 end threads. Includes steering cable
bellows kit.
Fits all Jet Drive models.
64-835457A15
15 ft.(4.6 m) 60 series cable with 5/16‑24 end threads. Includes steering cable 883053A 1
bellows kit.
Fits all Jet Drive models. For 135 & 540 deg. steering systems. 5/16 in. (7.9 mm)
64-835457A17 Fits Sport Jet models with 60 series cables
17 ft.(5.2 m) 60 series cable with 5/16‑24 end threads. Includes steering cable
QUICKSILVER® RIGGING Fits all Jet Drive models. BELLOWS KITS
STEERING CABLE BULKHEAD FITTINGS AND
bellows kit.
64-835457A19
19 ft.(5.8 m) 60 series cable with 5/16‑24 end threads. Includes steering cable
Hardware used to complete Sport Jet installations. Use either bulkhead
bellows kit.
fittings or bellows kit. Not for use together.
Fits all Jet Drive models.
64-835457A21
21 ft.(6.4 m) 60 series cable with 5/16‑24 end threads. Includes steering cable
bellows kit.
Fits all Jet Drive models. BULKHEAD COMPRESSION FITTINGS
64-835457A23
23 ft.(7.0 m) 60 series cable with 5/16‑24 end threads. Includes steering cable
bellows kit.
Fits all Jet Drive models.
64-835457A25
25 ft.(7.6 m) 60 series cable with 5/16‑24 end threads. Includes steering cable
bellows kit.
Fits all Jet Drive models.

820675
Fits Sport‑Jet 90/95/120 and 175 with 40 series cables. Also fits 200 OptiMax, 210
& 240 EFI Jet Drives.

250
