P. 263

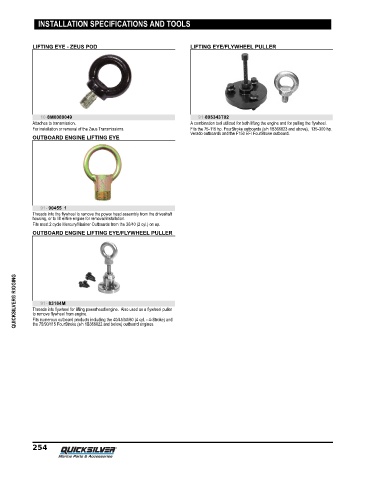

INSTALLATION SPECIFICATIONS AND TOOLS



            LIFTING EYE - ZEUS POD                              LIFTING EYE/FLYWHEEL PULLER













              10-8M0080049                                         91-895343T02
            Attaches to transmission.                           A combination tool utilized for both lifting the engine and for pulling the flywheel.
            For installation or removal of the Zeus Transmissions.  Fits the 75‑115 hp. FourStroke outboards (s/n 1B366823 and above),  135‑300 hp.
                                                                Verado outboards and the F150 EFI FourStroke outboard.
            OUTBOARD ENGINE LIFTING EYE












              91- 90455  1
            Threads into the flywheel to remove the power head assembly from the driveshaft
            housing, or to lift entire engine for removal/installation.
            Fits most 2 cycle Mercury/Mariner Outboards from the 30/40 (2 cyl.) on up.
            OUTBOARD ENGINE LIFTING EYE/FLYWHEEL PULLER







      QUICKSILVER® RIGGING  Threads into flywheel for lifting powerhead/engine.  Also used as a flywheel puller




              91- 83164M
            to remove flywheel from engine.
            Fits numerous outboard products including the 40/45/50/60 (4 cyl. ‑ 4‑Stroke) and
            the 75/90/115 FourStroke (s/n 1B366822 and below) outboard engines.























            254
