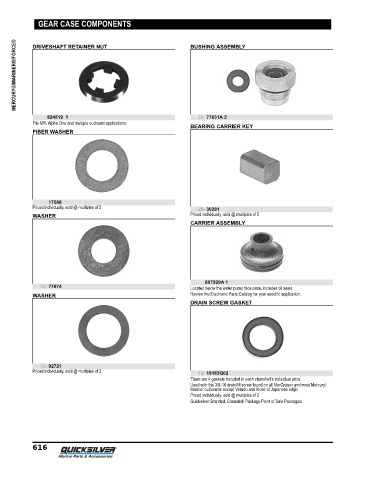

Page 625 - Quicksilver Product Guide (2020) - 8M0163242

GEAR CASE COMPONENTS BUSHING ASSEMBLY

MERCURY®/MARINER®/FORCE®
DRIVESHAFT RETAINER NUT

824519 1 23- 77631A 2
Fits MR, Alpha One and multiple outboard applications.
BEARING CARRIER KEY
FIBER WASHER

17588
Priced individually, sold @ multiples of 5 28- 30281
WASHER Priced individually, sold @ multiples of 5
CARRIER ASSEMBLY

807929A 1
12- 77674 Located below the water pump face plate, includes oil seals.
WASHER Review the Electronic Parts Catalog for your specific application.
DRAIN SCREW GASKET

12- 92721
Priced individually, sold @ multiples of 2 12- 19183Q02
There are 4 gaskets included in each clamshell's individual price.
Used with the 3/8‑16 drain/fill screw found on all MerCruiser and most Mercury/
Mariner outboards except Verado and those of Japanese origin.
Priced individually, sold @ multiples of 2
Quicksilver Branded, Clamshell Package Point of Sale Packaged.

616
