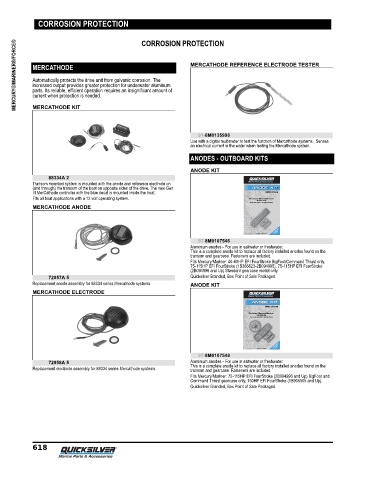

Page 627 - Quicksilver Product Guide (2020) - 8M0163242

CORROSION PROTECTION CORROSION PROTECTION

MERCURY®/MARINER®/FORCE® MERCATHODE MERCATHODE REFERENCE ELECTRODE TESTER

Automatically protects the drive unit from galvanic corrosion. The
increased output provides greater protection for underwater aluminum
parts. Its reliable, efficient operation requires an insignificant amount of
current when protection is needed.

MERCATHODE KIT

91-8M0135998
Use with a digital multimeter to test the function of Mercathode systems. Senses
an electrical current in the water when testing the Mercathode system.
ANODES - OUTBOARD KITS
ANODE KIT
88334A 2
Transom mounted system is mounted with the anode and reference electrode on
(and through) the transom of the boat on opposite sides of the drive. The new Gen
III MerCathode controller with the blue decal is mounted inside the boat.
Fits all boat applications with a 12 volt operating system.
MERCATHODE ANODE

97-8M0107546
Aluminum anodes ‑ For use in saltwater or freshwater.
This is a complete anode kit to replace all factory installed anodes found on the
transom and gearcase. Fasteners are included.
Fits Mercury/Mariner: 40‑60HP EFI FourStroke BigFoot/Command Thrust only,
75‑115HP EFI FourStroke (1B366823‑2B094995), 75‑115HP EFI FourStroke
(2B094996 and Up) Standard gearcase model only.
72957A 5 Quicksilver Branded, Box Point of Sale Packaged.
Replacement anode assembly for 88334 series Mercathode systems. ANODE KIT
MERCATHODE ELECTRODE

97-8M0107548
72958A 5 Aluminum anodes ‑ For use in saltwater or freshwater.
Replacement electrode assembly for 88334 series Mercathode systems. This is a complete anode kit to replace all factory installed anodes found on the
transom and gearcase. Fasteners are included.
Fits Mercury/Mariner: 75‑115HP EFI FourStroke (2B094996 and Up) BigFoot and
Command Thrust gearcase only, 150HP EFI FourStroke (1B905505 and Up).
Quicksilver Branded, Box Point of Sale Packaged.

618
