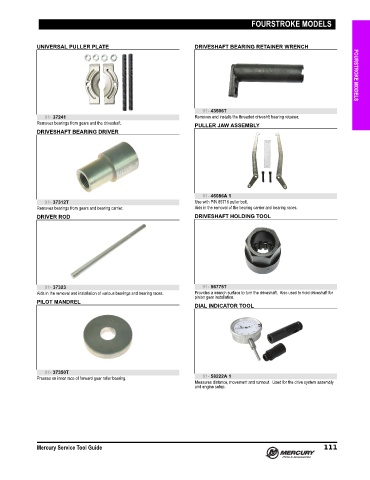

Page 118 - Mercury Service Tool Guide (2020) - 8M0163249
P. 118
FOURSTROKE MODELS
UNIVERSAL PULLER PLATE DRIVESHAFT BEARING RETAINER WRENCH FOURSTROKE MODELS
91- 43506T
91- 37241 Removes and installs the threaded driveshft bearing retainer.
Removes bearings from gears and the driveshaft. PULLER JAW ASSEMBLY
DRIVESHAFT BEARING DRIVER
91- 46086A 1
91- 37312T Use with P/N 85716 puller bolt.
Removes bearings from gears and bearing carrier. Aids in the removal of the bearing carrier and bearing races.
DRIVER ROD DRIVESHAFT HOLDING TOOL
91- 37323 91- 56775T
Aids in the removal and installation of various bearings and bearing races. Provides a wrench surface to turn the driveshaft. Also used to hold driveshaft for
pinion gear installation.
PILOT MANDREL
DIAL INDICATOR TOOL
91- 37350T
Presses on inner race of forward gear roller bearing. 91- 58222A 1
Measures distance, movement and runnout. Used for the drive system assembly
and engine setup.
Mercury Service Tool Guide 111
