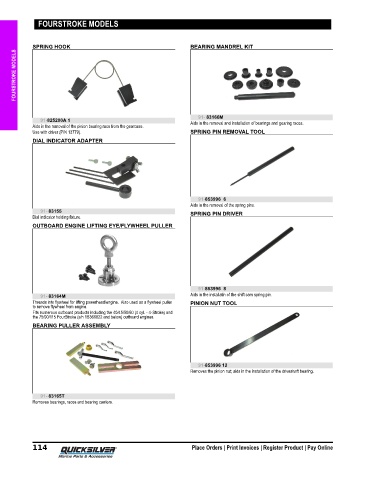

Page 121 - Mercury Service Tool Guide (2020) - 8M0163249
P. 121
FOURSTROKE MODELS
SPRING HOOK BEARING MANDREL KIT
FOURSTROKE MODELS
91- 83166M
91-825200A 1
Aids in the removal of the pinion bearing race from the gearcase. Aids in the removal and installation of bearings and gearing races.
Use with driver (P/N 13779). SPRING PIN REMOVAL TOOL
DIAL INDICATOR ADAPTER
91-853996 6
Aids in the removal of the spring pins.
91- 83155 SPRING PIN DRIVER
Dial indicator holding fixture.
OUTBOARD ENGINE LIFTING EYE/FLYWHEEL PULLER
91-853996 8
91- 83164M Aids in the installatin of the shift cam spring pin.
Threads into flywheel for lifting powerhead/engine. Also used as a flywheel puller PINION NUT TOOL
to remove flywheel from engine.
Fits numerous outboard products including the 40/45/50/60 (4 cyl. ‑ 4‑Stroke) and
the 75/90/115 FourStroke (s/n 1B366822 and below) outboard engines.
BEARING PULLER ASSEMBLY
91-853996 12
Removes the pinion nut; aids in the installation of the driveshaft bearing.
91- 83165T
Removes bearings, races and bearing carriers.
