Page 120 - Mercury Service Tool Guide (2020) - 8M0163249
P. 120

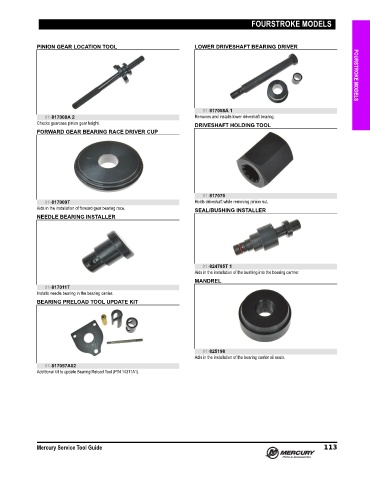

FOURSTROKE MODELS
PINION GEAR LOCATION TOOL LOWER DRIVESHAFT BEARING DRIVER FOURSTROKE MODELS
91-817058A 1
91-817008A 2 Removes and installs lower driveshaft bearing.
Checks gearcase pinion gear height. DRIVESHAFT HOLDING TOOL
FORWARD GEAR BEARING RACE DRIVER CUP
91-817070
91-817009T Holds driveshaft while removing pinion nut.
Aids in the installation of forward gear bearing race. SEAL/BUSHING INSTALLER
NEEDLE BEARING INSTALLER
91-824785T 1
Aids in the installation of the bushing into the bearing carrrier.
MANDREL
91-817011T
Installs needle bearing in the bearing carrier.
BEARING PRELOAD TOOL UPDATE KIT
91-825198
Adis in the installation of the bearing carrier oil seals.
91-817057A02
Additional kit to update Bearing Reload Tool (P/N 14311A1).
Mercury Service Tool Guide 113
