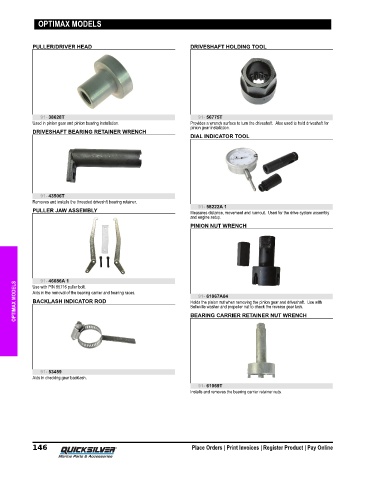

OPTIMAX MODELS
PULLER/DRIVER HEAD DRIVESHAFT HOLDING TOOL
91- 38628T 91- 56775T
Used in pinion gear and pinion bearing installation. Provides a wrench surface to turn the driveshaft. Also used to hold driveshaft for
pinion gear installation.
DRIVESHAFT BEARING RETAINER WRENCH
DIAL INDICATOR TOOL
91- 43506T
Removes and installs the threaded driveshft bearing retainer.
91- 58222A 1
PULLER JAW ASSEMBLY Measures distance, movement and runnout. Used for the drive system assembly
and engine setup.
PINION NUT WRENCH
91- 46086A 1
OPTIMAX MODELS Aids in the removal of the bearing carrier and bearing races. Holds the pinion nut when removing the pinion gear and driveshaft. Use with
Use with P/N 85716 puller bolt.
91- 61067A04
BACKLASH INDICATOR ROD
Belleville washer and propeller nut to check the reverse gear lash.
BEARING CARRIER RETAINER NUT WRENCH
91- 53459
Aids in checking gear backlash.
91- 61069T
Installs and removes the bearing carrier retainer nuts.
