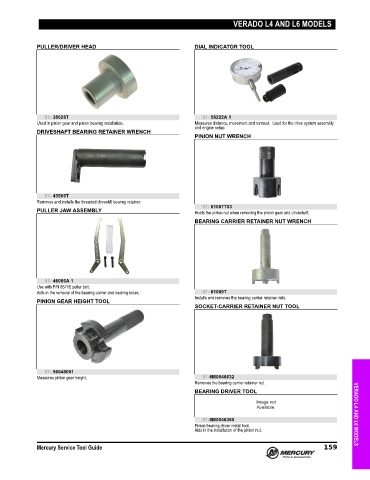

VERADO L4 AND L6 MODELS

PULLER/DRIVER HEAD DIAL INDICATOR TOOL

91- 38628T 91- 58222A 1
Used in pinion gear and pinion bearing installation. Measures distance, movement and runnout. Used for the drive system assembly
and engine setup.
DRIVESHAFT BEARING RETAINER WRENCH
PINION NUT WRENCH

91- 43506T
Removes and installs the threaded driveshft bearing retainer.
91- 61067T03
PULLER JAW ASSEMBLY Holds the pinion nut when removing the pinion gear and driveshaft.
BEARING CARRIER RETAINER NUT WRENCH

91- 46086A 1
Use with P/N 85716 puller bolt.
Aids in the removal of the bearing carrier and bearing races. 91- 61069T
Installs and removes the bearing carrier retainer nuts.
PINION GEAR HEIGHT TOOL
SOCKET-CARRIER RETAINER NUT TOOL

91- 56048001
Measures pinion gear height. 91-8M0046632
Removes the bearing carrier retainer nut.
BEARING DRIVER TOOL

91-8M0046360 VERADO L4 AND L6 MODELS
Pinion bearing driver install tool.
Aids in the installation of the pinion nut.
