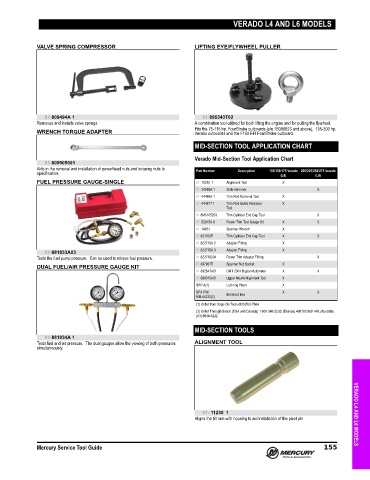

Page 162 - Mercury Service Tool Guide (2020) - 8M0163249

VERADO L4 AND L6 MODELS

VALVE SPRING COMPRESSOR LIFTING EYE/FLYWHEEL PULLER

91-809494A 1 91-895343T02
Removes and installs valve springs. A combination tool utilized for both lifting the engine and for pulling the flywheel.
Fits the 75‑115 hp. FourStroke outboards (s/n 1B366823 and above), 135‑300 hp.
WRENCH TORQUE ADAPTER Verado outboards and the F150 EFI FourStroke outboard.
MID-SECTION TOOL APPLICATION CHART

Verado Mid‑Section Tool Application Chart
91-809905001
Aids in the removal and installation of powerhead nuts and torquing nuts to Part Number Description 135/150/175 Verado 200/225/250/275 Verado
specification.
(L4) (L6)
FUEL PRESSURE GAUGE-SINGLE 91- 11230 1 Alignment Tool X
91- 34569A 1 Slide Hammer X
91- 44486A 1 Trim Rod Removal Tool X
91- 44487T 1 Trim Rod Guide Removal X
Tool
91-8M0105203 Trim Cylinder End Cap Tool X
91- 52915A 6 Power Trim Test Gauge Kit X X
91- 74951 Spanner Wrench X
91-821709T Trim Cylinder End Cap Tool X X
91-822778A 2 Adapter Fitting X
91-881833A03 91-822778A 3 Adapter Fitting X
Tests the fuel pump pressure. Can be used to relieve fuel pressure. 91-822778004 Power Trim Adapter Fitting X
91-897957T Spanner Nut Socket X
DUAL FUEL/AIR PRESSURE GAUGE KIT
91-892647A01 DMT 2004 Digital Multimeter X X
91-899015A01 Upper Mount Alignment Tool X
SRP-4(1) Lockring Pliers X
SPX P/N Breakout Box X X
MM-46225(2)
(1) Order from Snap-On Tools (800)762-7664
(2) Order Through Bosch (USA and Canada) 1-800-345-2233; (Europe) 496182 959 149; (Australia
(03) 9544-6222
MID-SECTION TOOLS
91-881834A 1
Tests fuel and air pressure. The dual gauges allow the viewing of both pressures ALIGNMENT TOOL
simultaneously.

91- 11230 1 VERADO L4 AND L6 MODELS
Aligns the tilt ram with housing to aid installation of the pivot pin.

Mercury Service Tool Guide 155
