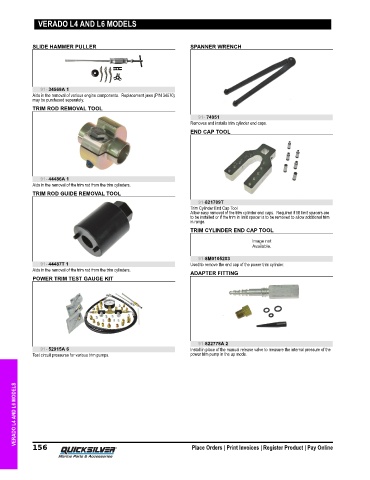

Page 163 - Mercury Service Tool Guide (2020) - 8M0163249

VERADO L4 AND L6 MODELS

SLIDE HAMMER PULLER SPANNER WRENCH

91- 34569A 1
Aids in the removal of various engine components. Replacement jaws (P/N 34570)
may be purchased separately.
TRIM ROD REMOVAL TOOL
91- 74951
Removes and installs trim cylinder end caps.
END CAP TOOL

91- 44486A 1
Aids in the removal of the trim rod from the trim cylinders.
TRIM ROD GUIDE REMOVAL TOOL
91-821709T
Trim Cylinder End Cap Tool
Allow easy removal of the trim cylinder end caps. Required if tilt limit spacers are
to be installed or if the trim in limit spacer is to be removed to allow additional trim
in range.
TRIM CYLINDER END CAP TOOL

91-8M0105203
91- 44487T 1 Used to remove the end cap of the power trim cylinder.
Aids in the removal of the trim rod from the trim cylinders.
ADAPTER FITTING
POWER TRIM TEST GAUGE KIT

91-822778A 2
91- 52915A 6 Install in place of the manual release valve to measure the internal pressure of the
Test circuit pressures for various trim pumps. power trim pump in the up mode.

VERADO L4 AND L6 MODELS
