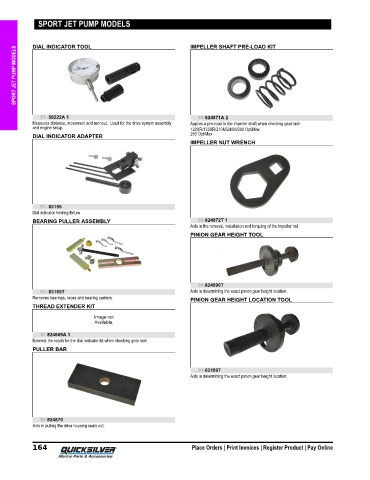

Page 171 - Mercury Service Tool Guide (2020) - 8M0163249

SPORT JET PUMP MODELS IMPELLER SHAFT PRE-LOAD KIT

DIAL INDICATOR TOOL
SPORT JET PUMP MODELS

91- 58222A 1 91-824871A 2
Measures distance, movement and runnout. Used for the drive system assembly Applies a pre‑load to the impeller shaft when checking gear lash.
and engine setup. 120XR/175XR/210M/240M/200 OptiMax
DIAL INDICATOR ADAPTER 250 OptiMax
IMPELLER NUT WRENCH

91- 83155
Dial indicator holding fixture.
BEARING PULLER ASSEMBLY 91-824872T 1
Aids in the removal, installation and torquing of the impeller nut.
PINION GEAR HEIGHT TOOL

91-824890T
91- 83165T Aids in determining the exact pinion gear height location.
Removes bearings, races and bearing carriers. PINION GEAR HEIGHT LOCATION TOOL
THREAD EXTENDER KIT

91-824869A 1
Extends the reach for the dial indicator kit when checking gear lash.
PULLER BAR

91-831897
Aids in determining the exact pinion gear height location.

91-824870
Aids in pulling the drive housing seals out.
