P. 172

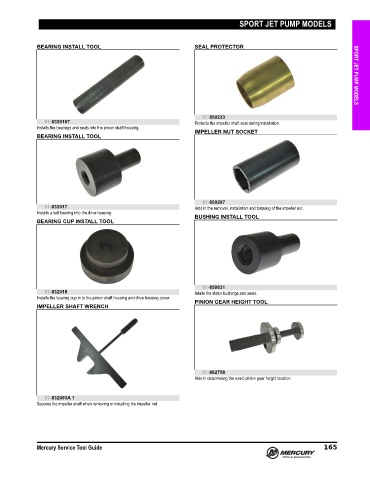

SPORT JET PUMP MODELS
BEARING INSTALL TOOL SEAL PROTECTOR SPORT JET PUMP MODELS
91-850233
91-832016T Protects the impeller shaft seal during installation.
Installs the bearings and seals into the pinion shaft housing.
IMPELLER NUT SOCKET
BEARING INSTALL TOOL
91-850297
91-832017 Aids in the removal, installation and torquing of the impeller nut.
Installs a ball bearing into the drive housing.
BUSHING INSTALL TOOL
BEARING CUP INSTALL TOOL
91-850831
91-832018 Intalls the stator bushings and seals.
Installs the bearing cup in to the pinion shaft housing and drive housing cover.
PINION GEAR HEIGHT TOOL
IMPELLER SHAFT WRENCH
91-882758
Aids in determining the exact pinion gear height location.
91-832093A 1
Secures the impeller shaft when removing or installing the impeller nut.
Mercury Service Tool Guide 165
