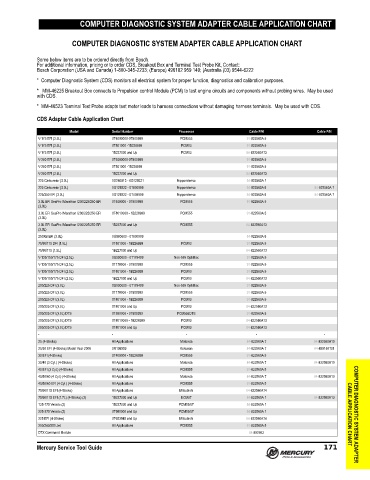

COMPUTER DIAGNOSTIC SYSTEM ADAPTER CABLE APPLICATION CHART

COMPUTER DIAGNOSTIC SYSTEM ADAPTER CABLE APPLICATION CHART

Some below items are to be ordered directly from Bosch.
For additional information, pricing or to order CDS, Breakout Box and Terminal Test Probe Kit, Contact:
Bosch Corporation (USA and Canada) 1‑800‑345‑2233; (Europe) 496182 959 149; (Australia (03) 9544‑6222
* Computer Diagnostic System (CDS) monitors all electrical system for proper function, diagnostics and calibration purposes.
* MM‑46225 Breakout Box connects to Propulsion control Module (PCM) to test engine circuits and components without probing wires. May be used
with CDS.
* MM‑46523 Terminal Test Probe adapts test meter leads to harness connections without damaging harness terminals. May be used with CDS.

CDS Adapter Cable Application Chart

Model Serial Number Processor Cable P/N Cable P/N
V-175 EFI (2.5L) 0T4090000-0T800999 PCM555 91-822560A 5
V-175 EFI (2.5L) 0T801000 -1B226999 PCM03 91-822560A 5
V-175 EFI (2.5L) 1B227000 and Up PCM03 84-822560A13
V-200 EFI (2.5L) 0T4090000-0T800999 91-822560A 5
V-200 EFI (2.5L) 0T801000 -1B226999 91-822560A 5
V-200 EFI (2.5L) 1B227000 and Up 84-822560A13
225 Carburetor (3.0L) 0D280813 - 0G129221 Nippondenso 84-822560A 1
225 Carburetor (3.0L) 0G129222 - 0T800999 Nippondenso 84-822560A 6 84-822560A 7
225/350 EFI (3.0L) 0G129222 - 0T408999 Nippondenso 84-822560A 6 84-822560A 7
3.0L EFI SeaPro /Marathon /200/225/250 EFI 0T409000 - 0T800999 PCM555 91-822560A 5
(3.0L)
3.0L EFI SeaPro /Marathon /200/225/250 EFI 0T8010000 - 1B226999 PCM555 91-822560A 5
(3.0L)
3.0L EFI SeaPro /Marathon /200/225/250 EFI 1B227000 and Up PCM555 84-822560A13
(3.0L)
250XB EFI (3.0L) 0G980600 - 0T800999 84-822560A 6
75/90/115 DFI (1.5L) 0T801000 - 1B226999 PCM03 91-822560A 5
75/90/115 (1.5L) 1B227000 and Up 84-822560A13
V-135/150/175 DFI (2.5L) 0G590000 - 0T178499 Non-555 OptiMax 91-822560A 5
V-135/150/175 DFI (2.5L) 0T178500 - 0T800999 PCM555 91-822560A 5
V-135/150/175 DFI (2.5L) 0T801000 - 1B226999 PCM03 91-822560A 5
V-135/150/175 DFI (2.5L) 1B227000 and Up PCM03 84-822560A13
200/225 DFI (3.0L) 0G590000 - 0T178499 Non-555 OptiMax 91-822560A 5
200/225 DFI (3.0L) 0T178500 - 0T800999 PCM555 91-822560A 5
200/225 DFI (3.0L) 0T801000 - 1B226999 PCM03 91-822560A 5
200/225 DFI (3.0L) 0T801000 and Up PCM03 84-822560A13
200/225 DFI (3.0L) DTS 0T590000 - 0T800999 PCM555DTS 91-822560A 5
200/225 DFI (3.0L) DTS 0T8010000 - 1B226999 PCM03 84-822560A13
200/225 DFI (3.0L) DTS 0T801000 and Up PCM03 84-822560A13
- - - - -
25 (4-Stroke) All Applications Motorola 84-822560A 7 84-822560A10
25/30 EFI (4-Stroke) Model Year 2006 0R106999 Kokusan 84-822560A 7 84-899150T01
30 EFI (4-Stroke) 0T409000 - 1B226999 PCM555 91-822560A 5
30/40 (3 Cyl.) (4-Stroke) All Applications Motorola 84-822560A 7 84-822560A10
40 EFI (3 Cyl.) (4-Stroke) All Applications PCM555 91-822560A 5
40/50/60 (4 Cyl.) (4-Stroke) All Applications Motorola 84-822560A 7 84-822560A10
40/50/60 EFI (4 Cyl.) (4-Stroke) All Applications PCM555 91-822560A 5
75/90/115 EFI (4-Stroke) All Applications Mitsubishi 84-822560A14
75/90/115 EFI (1.7L) (4-Stroke) (2) 1B227000 and Up ECM07 84-822560A 1 84-822560A13
135-175 Verado (2) 1B227000 and Up PCM03/07 84-822560A 1
225-275 Verado (2) 0T980000 and Up PCM03/07 84-822560A 1 CABLE APPLICATION CHART COMPUTER DIAGNOSTIC SYSTEM ADAPTER
225 EFI (4-Stroke) 0T653945 and Up Mitsubishi 84-822560A14
200/240/250 Jet All Applications PCM555 91-822560A 5
DTX Command Module 84-892663

Mercury Service Tool Guide 171
