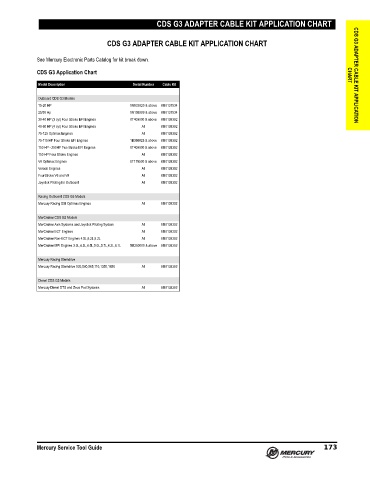

CDS G3 ADAPTER CABLE KIT APPLICATION CHART

CDS G3 ADAPTER CABLE KIT APPLICATION CHART

See Mercury Electronic Parts Catalog for kit break down.
CDS G3 Application Chart CHART CDS G3 ADAPTER CABLE KIT APPLICATION

Model Description Serial Number Cable Kit

Outboard CDS G3 Models
15-20 HP 0R833820 & above 8M0137534
25/30 Hp 0R106999 & above 8M0137534
30-40 HP (3 cyl) Four Stroke EFI Engines 0T409000 & above 8M0138392
40-60 HP (4 cyl) Four Stroke EFI Engines All 8M0138392
75-125 Optimax Engines All 8M0138392
75-115 HP Four Stroke EFI Engines 1B366823 & above 8M0138392
150 HP - 250HP Two Stroke EFI Engines 0T409000 & above 8M0138392
150 HP Four Stroke Engines All 8M0138392
V6 Optimax Engines 0T178500 & above 8M0138392
Verado Engines All 8M0138392
FourStroke V6 and V8 All 8M0138392
Joystick Piloting for Outboard All 8M0138392

Racing Outboard CDS G3 Models
Mercury Racing DSI Optimax Engines All 8M0138392

MerCruiser CDS G3 Models
MerCruiser Axis Systems and Joystick Piloting System All 8M0138392
MerCruiser ECT Engines All 8M0138392
MerCruiser Non-ECT Engines 4.5L,6.2L,8.2L All 8M0138392
MerCruiser MPI Engines 3.0L,4.3L,4.5L,5.0L,5.7L,6.2L,8.1L 0M300000 & above 8M0138392

Mercury Racing Sterndrive
Mercury Racing Sterndrive 520,540,565,110,1350,1650 All 8M0138392

Diesel CDS G3 Models
Mercury Diesel DTS and Zeus Pod Systems All 8M0138392

Mercury Service Tool Guide 173
