P. 184

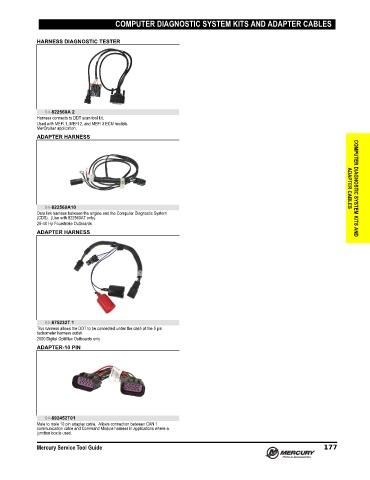

COMPUTER DIAGNOSTIC SYSTEM KITS AND ADAPTER CABLES


             HARNESS DIAGNOSTIC TESTER












                84-822560A 2
             Harness connects to DDT scan tool kit.
             Used with MEFI 1, MEFI 2, and MEFI 3 ECM models.
             MerCruiser application.
             ADAPTER HARNESS












                84-822560A10                                                                                        ADAPTER CABLES  COMPUTER DIAGNOSTIC SYSTEM KITS AND
             Data link harness between the engine and the Computer Diagnostic System
             (CDS).  (Use with 822560A7 only).
             25‑40 Hp Fourstroke Outboards.
             ADAPTER HARNESS

















                84-875232T 1
             This harness allows the DDT to be connected under the dash at the 5 pin
             tachometer harness outlet.
             2000 Digital OptiMax Outboards only.
             ADAPTER-10 PIN













                84-892452T01
             Male to male 10 pin adapter cable.  Allows connection between CAN 1
             communication cable and Command Module harness in applications where a
             junction box is used.

             Mercury Service Tool Guide                                                                     177
